RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403077 AIR CONDITIONING PANEL A

HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL  INSTALLATION


PROCEDURE

Hide 55900 1.INSTALL AIR CONDITIONING CONTROL ASSEMBLY

NOTICE:

When installing, do not to damage the design surface.


a.

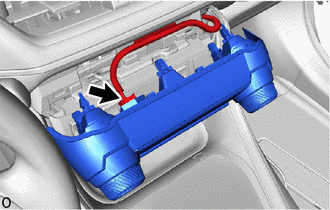

E406788

Connect the connector.


b.

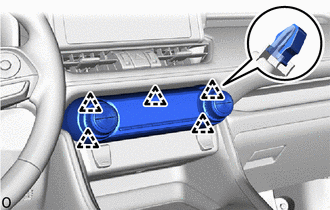

E406789

Attach the clip to install the air conditioning control assembly.

NOTICE:

When installing, do not push the dial switch in.
