HEATING / AIR CONDITIONING  CONDENSER(for Gasoline Model)  REASSEMBLY

0.917,1.917 1.25,1.917 true 0.76,1.813 1.073,2.01 0.313,0.198 10 false *a

*a

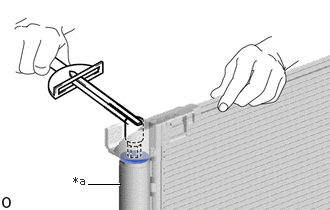

Modulator

Using needle-nose pliers, install a new cooler dryer to the modulator.

Sufficiently apply compressor oil to 3 O-rings and the fitting surfaces of a new cap.

Compressor Oil:

ND-OIL 8 or equivalent

NOTICE:

Keep the O-rings and O-ring fitting surfaces free from dirt or foreign matter.

0.917,1.917 1.25,1.917 true 0.76,1.813 1.073,2.01 0.313,0.198 10 false *a

*a

Modulator

Using a 14 mm straight hexagon socket wrench, install the cap to the modulator.

Torque:

4.0 N*m (41 kgf*cm, 35 in.*lbf)

NOTICE:

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
