HEATING / AIR CONDITIONING  BLOWER UNIT  REASSEMBLY

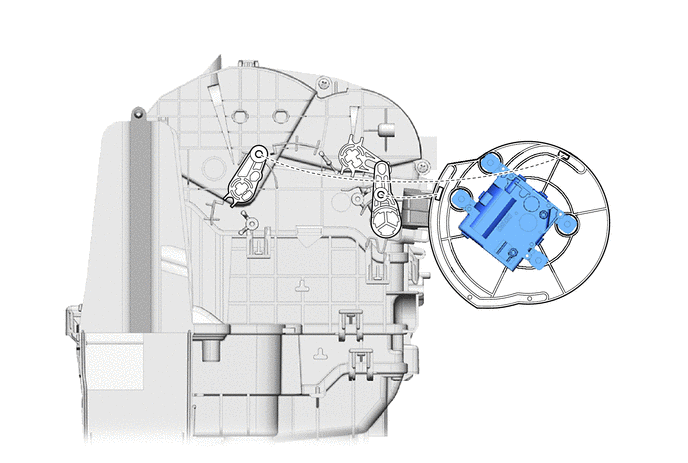

Connect the 2 links of the blower assembly to the 2 holes on the plate of the No. 1 blower damper servo sub-assembly as shown in the illustration.

3.594,2.021 3.927,2.021 true 2.333,1.594 2.667,1.594 true 4.594,2.021 4.927,2.021 true 5.927,1.625 6.26,1.625 true 3.417,1.927 3.594,2.104 0.177,0.177 10 true *a 2.167,1.5 2.344,1.677 0.177,0.177 10 true *a 4.917,1.938 5.094,2.115 0.177,0.177 10 true *b 6.281,1.531 6.646,1.823 0.365,0.292 10 false *b

*a

Link

*b

Hole

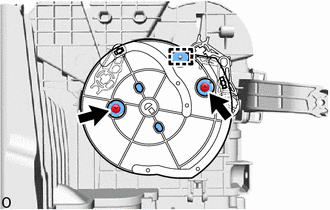

Attach the guide.

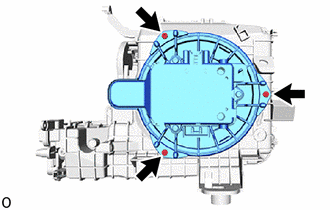

Install the blower motor with fan sub-assembly with the 3 screws.

NOTICE:

Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.

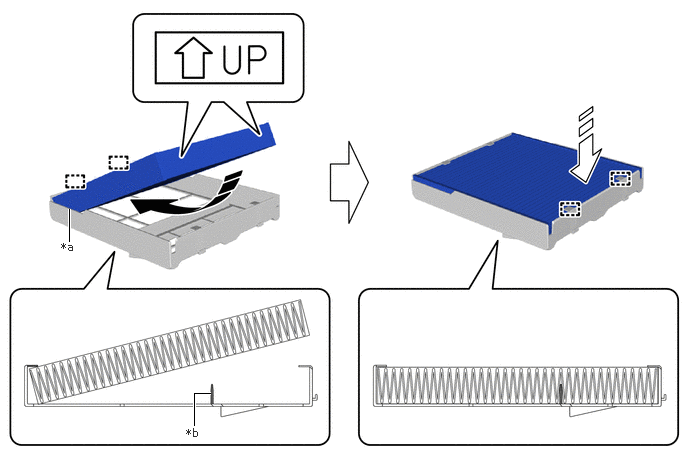

Attach the guide on the cutout side of the air filter case and then attach the guide as shown in the illustration to install the clean air filter.

NOTICE:

·

Do not apply excessive force to the filter medium, as doing so may damage it.

·

Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.

·

Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.

0.719,2.51 0.719,2.177 true 2.021,4.427 2.021,4.094 2.021,4.094 2.188,4.094 true 0.635,2.5 0.948,2.698 0.313,0.198 10 false *a 1.938,4.438 2.25,4.635 0.313,0.198 10 false *b

*a	Cutout	*b	Rib
	Install in this Direction (1)		Install in this Direction (2)

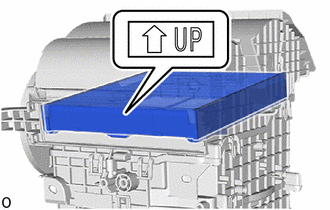

Install the air filter case.

NOTICE:

Insert so that the UP mark arrow is pointing upwards.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

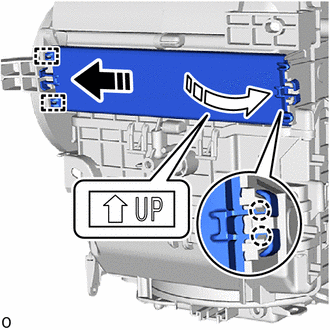

Insert the guide in the direction indicated by the arrow shown in the illustration.
