GF2A TRANSFER / 4WD / AWD  TRANSFER CASE FRONT OIL SEAL(for RH Side)  COMPONENTS

ILLUSTRATION

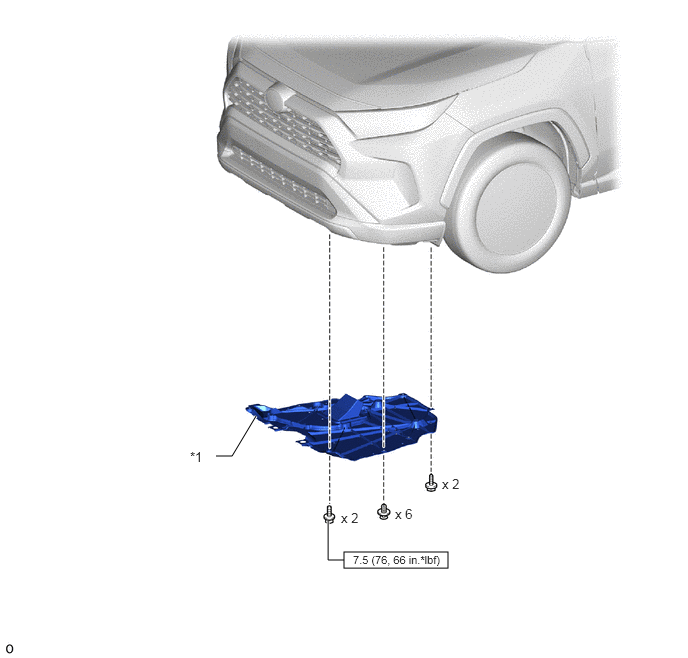

3.583,5.75 4.667,5.917 1.083,0.167 3.583,5.833 3.417,5.833 3.417,5.833 3.417,5.427 true 2.25,4.75 2.417,4.75 2.417,4.75 2.667,4.333 true 3.677,5.76 4.844,5.927 1.167,0.167 8 false 7.5 (76, 66 in.*lbf) 4.604,4.958 4.927,5.146 0.323,0.188 10 false x 2 3.552,5.313 3.865,5.49 0.313,0.177 10 false x 2 4.115,5.271 4.365,5.438 0.25,0.167 10 false x 6 1.979,4.677 2.208,4.844 0.229,0.167 10 false *1

*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

ILLUSTRATION

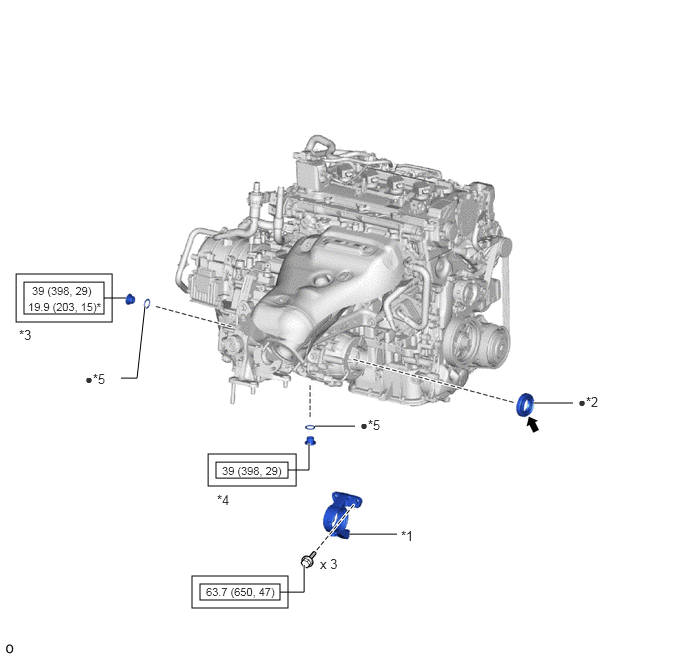

2.083,6.083 2.917,6.25 0.833,0.167 2,6 3,6.333 1,0.333 2.167,4.729 3.083,5.063 0.917,0.333 2.25,4.813 3,4.979 0.75,0.167 0.167,2.854 1.167,3.354 1,0.5 0.25,2.938 1.083,3.271 0.833,0.333 5.552,4.198 5.969,4.198 true 3.635,5.563 4.135,5.563 true 2.917,6.167 3.167,6.167 3.167,6.167 3.167,5.885 true 3,4.896 3.219,4.896 3.219,4.896 3.219,4.615 true 1.26,3.938 1.427,3.938 1.427,3.938 1.51,3.188 true 1.083,3.104 1.313,3.104 true 3.281,4.438 3.698,4.438 true 4.177,5.5 4.49,5.656 0.313,0.156 10 false *1 6.021,4.104 6.333,4.26 0.313,0.156 10 false ●*2 3.333,5.792 3.792,5.99 0.458,0.198 10 false x 3 2.146,6.094 3.083,6.25 0.938,0.156 8 false 63.7 (650, 47) 2.313,4.833 3.167,4.99 0.854,0.156 8 false 39 (398, 29) 0.333,2.958 1.188,3.115 0.854,0.156 8 false 39 (398, 29) 0.292,3.125 1.146,3.281 0.854,0.156 8 false 19.9 (203, 15)* 0.885,3.865 1.219,4.031 0.333,0.167 10 false ●*5 2.26,5.125 2.573,5.281 0.313,0.156 10 false *4 3.75,4.344 4.083,4.51 0.333,0.167 10 false ●*5 0.198,3.406 0.51,3.563 0.313,0.156 10 false *3

*1	DRIVE SHAFT BEARING BRACKET	*2	TRANSFER CASE OIL SEAL RH
*3	TRANSFER FILLER PLUG	*4	TRANSFER DRAIN PLUG
*5	GASKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	*	For use with union nut wrench
●	Non-reusable part		MP grease
