GF2A TRANSFER / 4WD / AWD  TRANSFER OIL  ON-VEHICLE INSPECTION

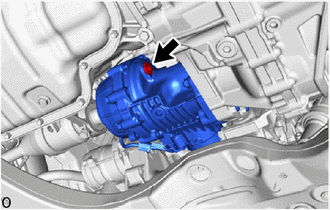

Using a 10 mm straight hexagon wrench and 10 x 12 mm long offset wrench, remove the transfer filler plug and gasket.

2.667,0.854 2.979,1.052 0.313,0.198 10 false *a

*a	0 to 5.0 mm (0 to 0.197 in.)

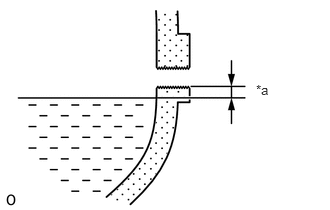

Check that the oil level is between 0 to 5.0 mm (0 to 0.197 in.) from the bottom lip of the transfer filler plug hole.

If the result is not as specified, add transfer oil.

Oil grade:

Toyota genuine differential gear oil LX

NOTICE:

·

Using transfer oil other than the specified oil may cause abnormal noise or vibration, or damage the transfer of your vehicle.

·

When adding oil, pour it slowly.

·

Too much or too little oil will lead to transfer problems.

0.563,4.406 0.396,4.406 0.396,4.406 0.396,4.156 true 0.375,4 0.375,3.5 true 0.875,3.958 1,3.167 1,3.167 1.167,3.167 true 0.615,4.323 0.927,4.479 0.313,0.156 10 false *a 0.292,3.271 0.604,3.427 0.313,0.156 10 false *b 2.052,3.594 2.365,3.75 0.313,0.156 10 false *c 1.26,3.083 1.573,3.25 0.313,0.167 10 false SST

*a	10 mm Straight Hexagon Wrench
*b	10 mm Union Nut Wrench
*c	Fulcrum Length

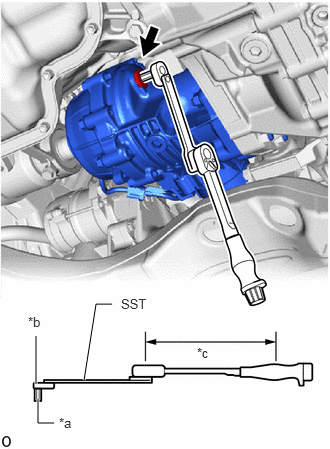

Using SST, 10 mm straight hexagon wrench and union nut wrench, install a new gasket into the transfer filler plug, and then install the transfer filler plug.

Torque:

Specified tightening torque : 39 N*m (398 kgf*cm, 29 ft.*lbf)

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201910,999999,_V1,_083040,_0402303,RM100000001JHCH,

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + SST (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 180 mm (7.087 in.)): 19.9 N*m (203 kgf*cm, 15 ft.*lbf)
