GF1A TRANSFER / 4WD / AWD  MULTI-TERRAIN SELECT SWITCH  INSPECTION

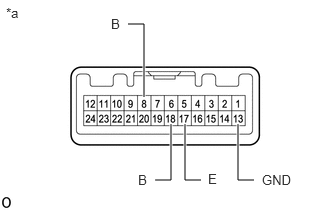

2.646,1.875 2.479,1.875 2.479,1.875 2.479,1.292 true 1.333,0.25 1.5,0.25 1.5,0.25 1.5,1.01 true 1.615,1.875 1.781,1.875 1.781,1.875 1.781,1.292 true 2.094,1.875 1.927,1.875 1.927,1.875 1.927,1.292 true 2.729,1.792 3.083,2.021 0.354,0.229 10 false GND 1.156,0.167 1.354,0.333 0.198,0.167 10 false B 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 1.438,1.792 1.615,1.99 0.177,0.198 10 false B 2.167,1.781 2.417,2.031 0.25,0.25 10 false E

*a	Component without harness connected Integration Control And Panel Assembly (Multi-Terrain Select Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
8 (B) - 13 (GND)	NORMAL mode switch being pushed and held	Below 1 Ω
	NORMAL mode switch not pushed	10 kΩ or higher
18 (B) - 17 (E)	ROCK & DIRT mode switch being pushed and held	0.5 to 0.52 kΩ
	ROCK & DIRT mode switch not pushed	10 kΩ or higher
18 (B) - 17 (E)	MUD & SAND mode switch being pushed and held	1.97 to 2.05 kΩ
	MUD & SAND mode switch not pushed	10 kΩ or higher

If the result is not as specified, replace the integration control and panel assembly (multi-terrain select switch).

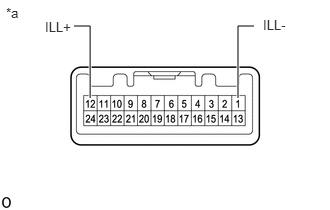

0.771,0.271 0.938,0.271 0.938,0.271 0.938,1.021 true 2.646,0.271 2.479,0.271 2.479,0.271 2.479,1.021 true 2.74,0.177 3.073,0.427 0.333,0.25 10 false ILL- 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.469,0.198 0.823,0.5 0.354,0.302 10 false ILL+

*a	Component without harness connected Integration Control And Panel Assembly (Multi-Terrain Select Switch)

Inspect the illumination:

Apply battery voltage to the integration control and panel assembly (multi-terrain select switch) and check that the switch illuminates.

OK:

Condition	Specified Condition
Battery positive (+) → Terminal 12 (ILL+) Battery negative (-) → Terminal 1 (ILL-)	Illuminates

If the result is not as specified, replace the integration control and panel assembly (multi-terrain select switch).
