FRONT SUSPENSION  FRONT SHOCK ABSORBER  DISPOSAL


PROCEDURE

Hide 48520 1.DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY

CAUTION:
C320205

·

Always use a cloth to prevent shards of metal flying about due to the release of pressurized gas.

·

Always wear safety glasses.



HINT:

The gas is colorless, odorless and non-poisonous.


a.
C403148N01
1.469,0.042 1.802,0.375 0.333,0.333 10 false A 2.365,0.042 2.865,0.375 0.5,0.333 10 false B

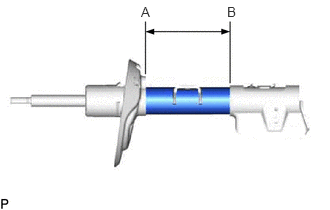

Place the front shock absorber horizontally with the piston rod extended, and using a hacksaw, make a hole between (A) and (B) shown in the illustration to discharge the gas inside.
