LIGHTING (EXT)  STOP LIGHT SWITCH  INSTALLATION


PROCEDURE

Hide 84345 1.INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER

a.

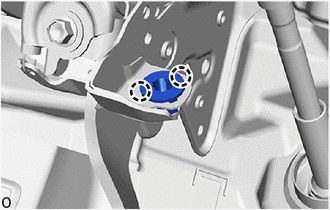

E404122

Attach the claw and install a new stop light switch mounting adjuster.


Hide 84340 2.INSTALL STOP LIGHT SWITCH ASSEMBLY

a.
E167768

Insert the stop light switch assembly to the stop light switch mounting adjuster until the switch body slightly touches the brake pedal.

NOTICE:

Do not depress the brake pedal.



b.
E404123C01
3.25,1.625 3.427,1.813 0.177,0.188 10 true *a
*a Protrusion Amount Measurement Area
V113147

Turn in this Direction


Turn the stop light switch assembly clockwise by approximately one fourth of a rotation.


c.

Check the protrusion amount of the shaft.

Standard:

0.5 to 2.6 mm (0.0197 to 0.1024 in.)



d.

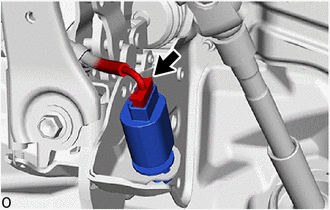

E404124

Connect the connector.
