LIGHTING (EXT)  SWITCH HOUSING  INSPECTION

Inspect the light switch circuit.

Measure the resistance according to the value(s) in the table below.

0.708,0.198 1.094,0.51 0.385,0.313 6.052,0.198 6.438,0.51 0.385,0.313 2.594,3.667 2.979,3.979 0.385,0.313 0.135,0.073 0.448,0.229 0.313,0.156 10 false *a 0.823,0.26 1.073,0.49 0.25,0.229 10 false z8 6.177,0.271 6.375,0.469 0.198,0.198 10 false z2 2.708,3.729 2.927,3.958 0.219,0.229 10 false z1

*a

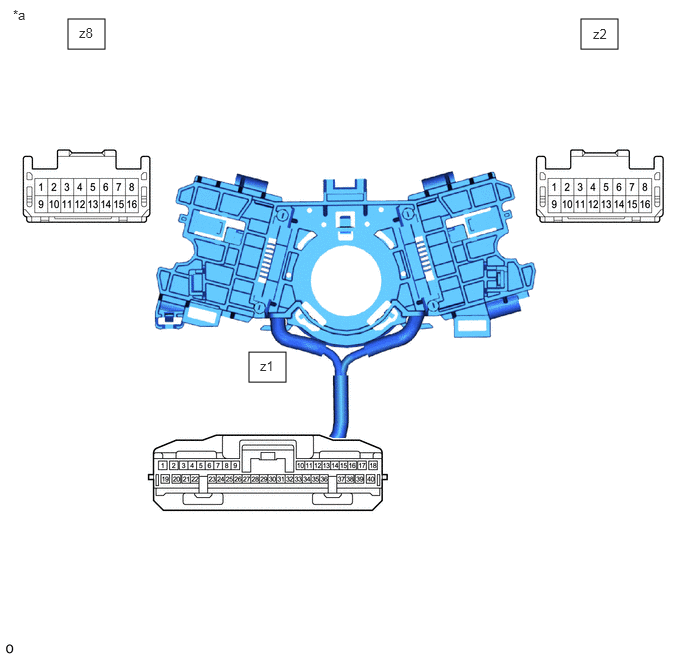

Component without harness connected (Steering Wheel Switch Housing)

-

-

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the steering wheel switch housing.
z1-3 - z8-14	Always	Below 1 Ω
z1-4 - z8-5
z1-5 - z8-10
z1-6 - z8-1
z1-7 - z8-6
z1-11 - z8-4
z1-12 - z8-13
z1-13 - z8-12

Inspect the turn signal switch circuit.

Measure the resistance according to the value(s) in the table below.

0.708,0.198 1.094,0.51 0.385,0.313 6.052,0.198 6.438,0.51 0.385,0.313 2.594,3.667 2.979,3.979 0.385,0.313 0.135,0.073 0.448,0.229 0.313,0.156 10 false *a 0.823,0.26 1.073,0.49 0.25,0.229 10 false z8 6.177,0.271 6.375,0.469 0.198,0.198 10 false z2 2.708,3.729 2.927,3.958 0.219,0.229 10 false z1

*a

Component without harness connected (Steering Wheel Switch Housing)

-

-

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the steering wheel switch housing.
z1-8 - z8-9	Always	Below 1 Ω
z1-9 - z8-3
z1-10 - z8-11
z1-13 - z8-12

Inspect the wiper switch circuit.

Measure the resistance according to the value(s) in the table below.

0.708,0.198 1.094,0.51 0.385,0.313 6.052,0.198 6.438,0.51 0.385,0.313 2.594,3.667 2.979,3.979 0.385,0.313 0.135,0.073 0.448,0.229 0.313,0.156 10 false *a 0.823,0.26 1.073,0.49 0.25,0.229 10 false z8 6.177,0.271 6.375,0.469 0.198,0.198 10 false z2 2.708,3.729 2.927,3.958 0.219,0.229 10 false z1

*a

Component without harness connected (Steering Wheel Switch Housing)

-

-

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the steering wheel switch housing.
z1-24 - z2-10	Always	Below 1 Ω
z1-25 - z2-13
z1-26 - z2-11
z1-27 - z2-12
z1-28 - z2-14
z1-29 - z2-7
z1-30 - z2-6
z1-31 - z2-15
z1-32 - z2-9
z1-33 - z2-5
z1-34 - z2-4
