STOP AND START  STOP AND START SYSTEM  Stop and Start Cancel Switch Circuit


DESCRIPTION

Stop and start control can be disabled by pressing the stop and start system cancel switch (eco run cancel switch assembly). The stop and start system cancel switch (eco run cancel switch assembly) is a momentary-type switch that switches between on and off when the switch is pressed. While stop and start control is disabled, the stop and start cancel indicator is illuminated to inform the driver.

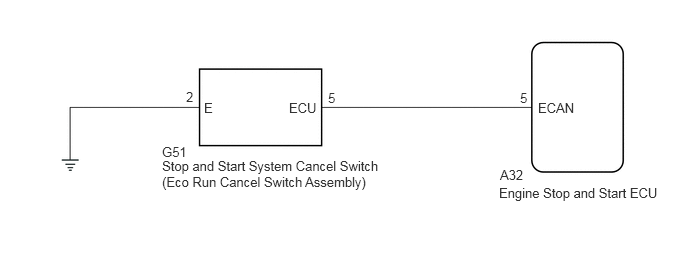

WIRING DIAGRAM

A450729E01
3.417,0.938 4.385,1.177 0.969,0.24 10 false 5 1.938,0.927 2.26,1.125 0.323,0.198 10 false 2 1.688,1.5 2.271,1.781 0.583,0.281 10 false G51 1.688,1.646 4.031,2.094 2.344,0.448 10 false Stop and Start System Cancel Switch (Eco Run Cancel Switch Assembly) 5.208,1.74 5.677,1.938 0.469,0.198 10 false A32 5.417,0.938 5.771,1.24 0.354,0.302 10 false 5 5.604,1.042 6.167,1.313 0.563,0.271 10 false ECAN 5.198,1.927 6.948,2.24 1.75,0.313 10 false Engine Stop and Start ECU 3.01,1.042 3.469,1.24 0.458,0.198 10 false ECU 2.125,1.042 2.583,1.24 0.458,0.198 10 false E

PROCEDURE

1.READ VALUE USING GTS (STOP&START CANCEL SWITCH)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Stop and Start / Data List / Stop&Start Cancel Switch.

Powertrain > Stop and Start > Data List
Tester Display
Stop&Start Cancel Switch
50003 392 208

e.

Read the value when the stop and start system cancel switch (eco run cancel switch assembly) is pressed.

OK:
GTS Display Condition Normal Condition
Stop&Start Cancel Switch Stop and start system cancel switch (eco run cancel switch assembly) is pressed ON
Stop and start system cancel switch (eco run cancel switch assembly) is not pressed OFF



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>PROBLEM SYMPTOMS TABLE


NG

2.INSPECT STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY)
2.INSPECT STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY)
a.

Inspect the stop and start system cancel switch (eco run cancel switch assembly).

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM CANCEL SWITCH ASSEMBLY>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY) - BODY GROUND)

NG

REPLACE STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY)

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM CANCEL SWITCH ASSEMBLY>REMOVAL


3.CHECK HARNESS AND CONNECTOR (STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY) - BODY GROUND)
a.

Disconnect the stop and start system cancel switch (eco run cancel switch assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G51-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY))
a.

Disconnect the engine stop and start ECU connector.


b.

Disconnect the stop and start system cancel switch (eco run cancel switch assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A32-5 (ECAN) - G51-5 (ECU) Always Below 1 Ω
A32-5 (ECAN) or G51-5 (ECU) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
