RM36D0EC _51 Engine / Hybrid System _083056 STOP AND START _0402418 STOP AND START SYSTEM J

STOP AND START  STOP AND START SYSTEM  Engine Hood Courtesy Switch Circuit


DESCRIPTION

The engine stop and start ECU detects whether the engine hood is open or closed based on a signal received from the engine hood courtesy switch built into the hood lock assembly.

·

The engine stop and start ECU prohibits starting of the engine by stop and start control and changes the mode to "stalled" if the engine hood is opened with the shift lever in D while the engine is stopped by stop and start control.

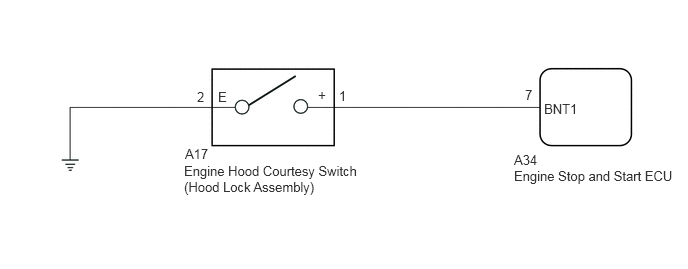

WIRING DIAGRAM

A348169E41
2.052,0.927 2.208,1.125 0.156,0.198 10 false 2 3.531,0.917 3.688,1.115 0.156,0.198 10 false 1 1.927,1.521 2.417,1.823 0.49,0.302 10 false A17 1.917,1.698 3.771,2.104 1.854,0.406 10 false Engine Hood Courtesy Switch (Hood Lock Assembly) 5.354,1.583 5.844,1.885 0.49,0.302 10 false A34 5.469,0.906 5.625,1.104 0.156,0.198 10 false 7 5.667,1.052 6.229,1.354 0.563,0.302 10 false BNT1 5.354,1.75 7.052,1.979 1.698,0.229 10 false Engine Stop and Start ECU 3.313,0.906 3.469,1.104 0.156,0.198 10 false + 2.271,0.927 2.427,1.125 0.156,0.198 10 false E

PROCEDURE

1.READ VALUE USING GTS (HOOD COURTESY SWITCH)
NOTICE:

Before performing this step, check that the engine hood can be opened by pulling the hood lock control cable.


a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Stop and Start / Data List / Hood Courtesy Switch.

Powertrain > Stop and Start > Data List
Tester Display
Hood Courtesy Switch
50003 392 207

e.

According to the display on the GTS, read the Data List.

OK:
GTS Display Condition Normal Condition
Hood Courtesy Switch Engine hood closed ON
Engine hood open OFF



Result:
Proceed to
OK
NG



OK

CHECK AND ADJUST HOOD LOCK ASSEMBLY FITTING (ADJUST HOOD)

Click hereVehicle Exterior>DOOR / HATCH>HOOD>ADJUSTMENT


NG

2.INSPECT HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)
2.INSPECT HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)
a.

Inspect the engine hood courtesy switch (hood lock assembly).

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENGINE HOOD COURTESY SWITCH>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY) - BODY GROUND)

NG

REPLACE HOOD LOCK ASSEMBLY

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENGINE HOOD COURTESY SWITCH>REMOVAL


3.CHECK HARNESS AND CONNECTOR (ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY) - BODY GROUND)
a.

Disconnect the engine hood courtesy switch (hood lock assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A17-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY))
a.

Disconnect the engine stop and start ECU connector.


b.

Disconnect the engine hood courtesy switch (hood lock assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A34-7 (BNT1) - A17-1 (+) Always Below 1 Ω
A34-7 (BNT1) or A17-1 (+) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

CHECK AND ADJUST HOOD LOCK ASSEMBLY FITTING (ADJUST HOOD)

Click hereVehicle Exterior>DOOR / HATCH>HOOD>ADJUSTMENT


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
