RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402383 WIPER ECU A

WIPER / WASHER WIPER ECU INSTALLATION

PROCEDURE

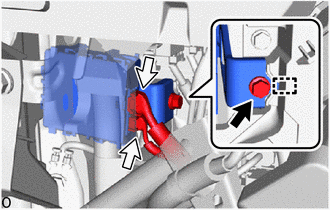

Hide Display 85940 1.INSTALL WINDSHIELD WIPER RELAY ASSEMBLY

a.

B529865C01

0,0 0,0 false

	Bolt
	Connector

Attach the guide and install the windshield wiper relay assembly with the bolt.

Torque:: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

NOTICE:: Do not reuse a windshield wiper relay assembly that has been subjected to an impact or dropped.

b.

Connect the 2 connectors.

NOTICE:: Be sure to connect the connector securely.

Hide Display 55545 2.INSTALL FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0016,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0016,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0016,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0016,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0016,

Hide Display 55606 3.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0040,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0040,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0040,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0040,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0040,

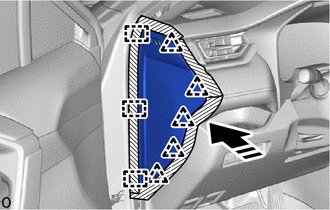

Hide Display 55318C 4.INSTALL INSTRUMENT SIDE PANEL LH

a.

B558629

0,0 0,0 false

V113147

Install in this Direction

Attach the guide as shown in the illustration.

b.

Attach the clip and install the instrument side panel LH.

c.

Remove the protective tape.

Hide Display 62312B 5.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201910,999999,_59,_083093,_0403688,RM100000001JUGB_02_0001,

Hide Display 62112 6.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201910,202004,_58,_083106,_0400607,RM100000001J8OJ_03_0041,202004,202104,_58,_083106,_0400607,RM100000001MIPH_03_0041,202104,202304,_58,_083106,_0400607,RM100000001W6F4_03_0041,202304,202405,_58,_083106,_0400607,RM1000000029PZ3_03_0041,202405,999999,_58,_083106,_0400607,RM100000002LWUO_03_0041,

Hide Display 67914B 7.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201910,202004,_58,_083106,_0400609,RM100000001J8OX_01_0035,202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0035,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0035,
