RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402380 WASHER MOTOR A

WIPER / WASHER  WASHER MOTOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85310 1.INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (for Front Side)

HINT:

This check should be performed with the windshield washer motor and pump assembly installed to the windshield washer jar assembly.


a.

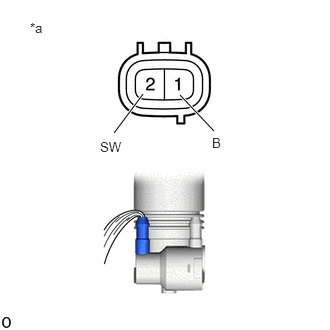

B558655C01
1.188,1.385 1.49,0.979 true 2.229,1.365 1.875,0.99 true 0.313,0.208 0.625,0.406 0.313,0.198 10 false *a 2.208,1.406 2.365,1.604 0.156,0.198 10 false B 1.042,1.448 1.354,1.646 0.313,0.198 10 false SW
*a Component without harness connected
(Windshield Washer Motor and Pump Assembly)


Add washer fluid in the windshield washer jar assembly with the windshield washer motor and pump assembly installed to the windshield washer jar assembly.


b.

Check if the washer fluid is sprayed while the battery voltage is applied between the terminals of the connector.

OK:
Auxiliary Battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal 1 (B)
Auxiliary battery negative (-) → Terminal 2 (SW) 		Washer fluid is pumped


If the result is not as specified, replace the windshield washer motor and pump assembly.


Hide 85310 2.INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (for Rear Side)

HINT:

This check should be performed with the windshield washer motor and pump assembly installed to the windshield washer jar assembly.


a.

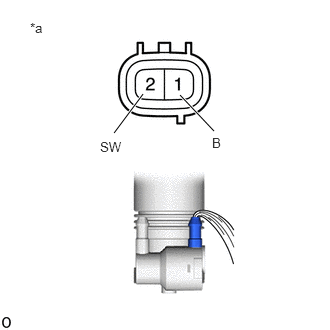

B558656C01
1.188,1.385 1.49,0.979 true 2.229,1.365 1.875,0.99 true 0.313,0.208 0.625,0.406 0.313,0.198 10 false *a 2.208,1.406 2.365,1.604 0.156,0.198 10 false B 1.042,1.448 1.354,1.646 0.313,0.198 10 false SW
*a Component without harness connected
(Windshield Washer Motor and Pump Assembly)


Add washer fluid in the windshield washer jar assembly with the windshield washer motor and pump assembly installed to the windshield washer jar assembly.


b.

Check if the washer fluid is sprayed while the battery voltage is applied between the terminals of the connector.

OK:
Auxiliary Battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal 2 (SW)
Auxiliary battery negative (-) → Terminal 1 (B) 		Washer fluid is pumped


If the result is not as specified, replace the windshield washer motor and pump assembly.
