RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402379 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  REMOVAL


PROCEDURE

Hide 45287 1.REMOVE LOWER STEERING COLUMN COVER

NOTICE:

If the removal procedures are followed incorrectly, the part may become damaged.

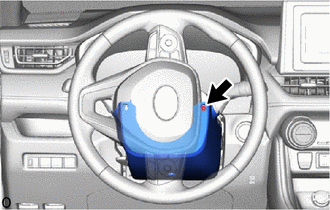

a.
B558617

Turn the steering wheel assembly 90° to the right from the straight condition and remove the screw shown in the illustration.

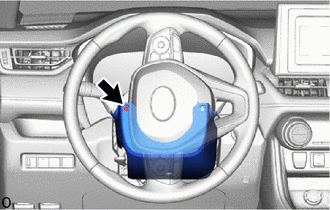

b.
B558618

Turn the steering wheel assembly 90° to the left from the straight condition and remove the screw shown in the illustration.

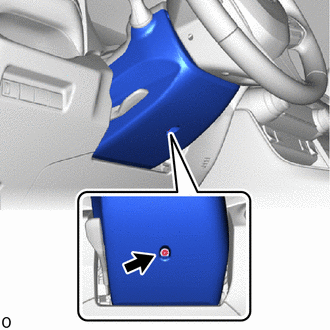

c.
B558619

Remove the screw.

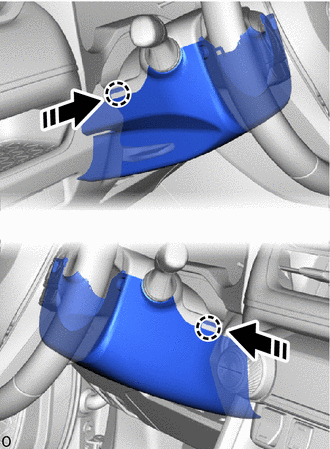

d.
B558620C01
0,0 0,0 false
V113147

Push in this Direction


Push from both left and right sides to detach the claw as shown in the illustration.

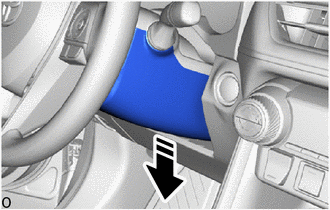

e.
B523536C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the lower steering column cover as shown in the illustration.


Hide 45286B 2.REMOVE UPPER STEERING COLUMN COVER

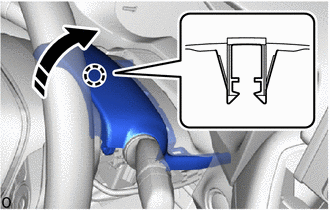

a.
B523537C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and disconnect the upper steering column cover.

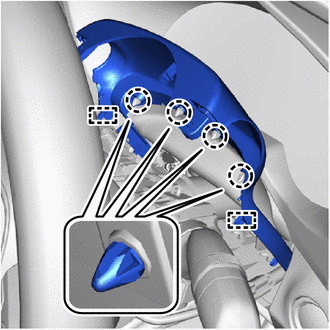

b.
B523538

Detach the claw and guide to remove the upper steering column cover from the meter hood spacer.


Hide 84650 3.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

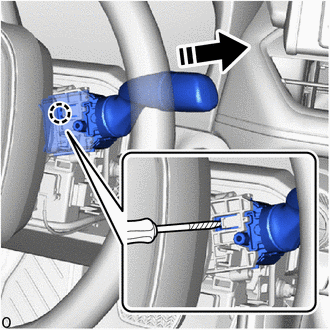

a.
B523539C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the windshield wiper switch assembly.

NOTICE:

Do not damage the claw.
