RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402375 FRONT WIPER MOTOR A

WIPER / WASHER  FRONT WIPER MOTOR  INSTALLATION


PROCEDURE

Hide 85110 1.INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY

NOTICE:
B522837

·

Do not touch the filter of waterproof cap.

·

When installing the windshield wiper motor assembly, check the waterproof cap filter for any cracks or damage and that there is no grease on it.

·

Do not reuse the windshield wiper motor assembly if it has been dropped or subjected to any strong impacts.



a.
B522839

Using a T30 "TORX" socket wrench, install the windshield wiper motor assembly with the 2 "TORX" bolts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)


b.
B522840C01
0,0 0,0 false
V100155

MP grease

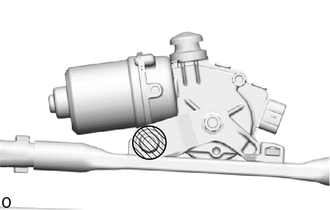

Apply MP grease to the windshield wiper motor crank pivot.


c.

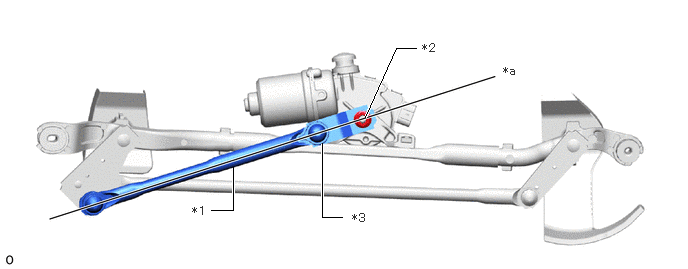

Install the No. 1 windshield wiper link rod so that the No. 1 windshield wiper link rod, windshield wiper motor crank pivot and windshield wiper motor assembly shaft are all aligned as shown in the illustration.

B522841C01
2.198,2.188 2.427,2.188 2.427,2.188 2.427,1.74 true 3.563,2.26 3.354,2.26 3.354,2.26 3.354,1.49 true 3.802,1.219 4.125,0.5 4.125,0.5 4.333,0.5 true 2,2.125 2.365,2.385 0.365,0.26 10 false *1 4.396,0.427 4.74,0.646 0.344,0.219 10 false *2 3.667,2.198 4.042,2.458 0.375,0.26 10 false *3 5.24,0.667 5.677,0.958 0.438,0.292 10 false *a
*1 No. 1 Windshield Wiper Link Rod *2 Windshield Wiper Motor Assembly Shaft
*3 Windshield Wiper Motor Crank Pivot - -
*a Straight Line - -



Hide 2.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

a.
B522845C01
1.125,1.729 1.417,1.844 true 1.479,1.792 1.688,1.979 0.208,0.188 10 true *1
*1 Motor Grommet
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)

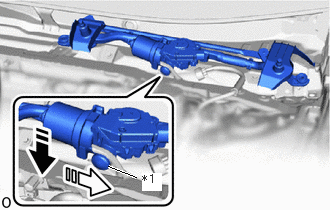

Attach the motor grommet and temporarily install the windshield wiper motor and link assembly as shown in the illustration.

NOTICE:

Do not damage the vehicle with the front wiper motor and link assembly.



b.
B522830C02
3.146,0.792 3.354,0.99 0.208,0.198 10 true (1) 0.135,0.333 0.344,0.531 0.208,0.198 10 true (2)
V100135

Bolt
V100136

Connector

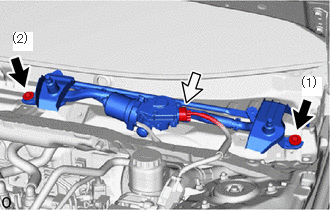

Install the windshield wiper motor and link assembly with the 2 bolts in the order shown in the illustration.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


c.

Connect the connector.


Hide 55708 3.INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

a.

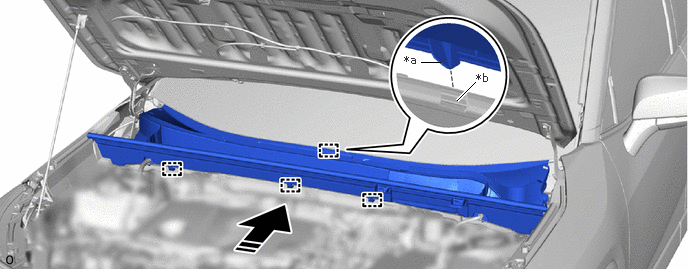

Temporarily install the cowl top ventilator louver sub-assembly as shown in the illustration.

B522848C01
4.385,0.646 4.583,0.646 false 4.76,1.042 4.948,0.854 true 4.208,0.552 4.521,0.833 0.313,0.281 10 false *a 4.958,0.74 5.354,1.073 0.396,0.333 10 false *b
*a Positioning Guide *b Cutout
V113147

Install in this Direction - -



b.

Align the positioning guide of the cowl top ventilator louver sub-assembly to the front window inner center moulding cutout.


c.

Attach the guide.


d.

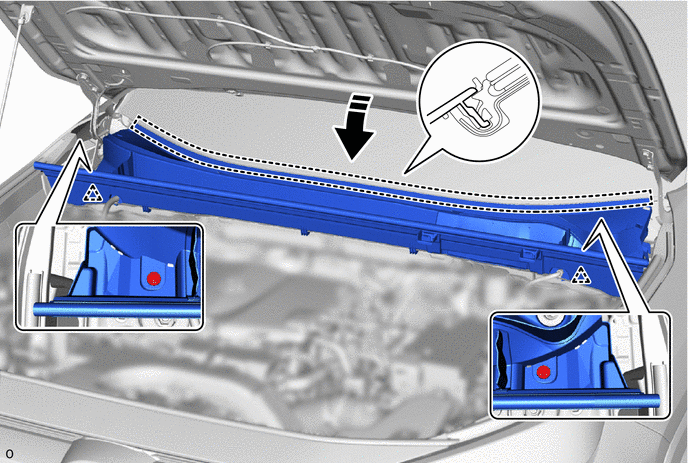

Hold the rear of the cowl top ventilator louver sub-assembly down and attach the cowl top ventilator louver sub-assembly to the front window inner center moulding.

B522849C01
0,0 0,0 false
V113147

Install in this Direction - -


HINT:
·

Check that the cowl top ventilator louver sub-assembly does not lift up.

·

Check that the positioning guide is not pinched by the front window inner center moulding.




e.

Install the cowl top ventilator louver sub-assembly with the 2 clips.


Hide 53867H 4.INSTALL FRONT FENDER TO COWL SIDE SEAL LH

a.
B494652C01
0,0 0,0 false
V113147

Install in this Direction

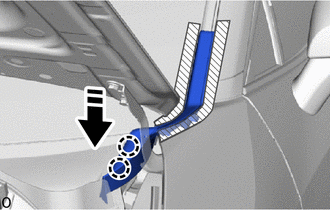

Attach the claw as shown in the illustration.


b.
B494653C01
0,0 0,0 false
V113147

Install in this Direction

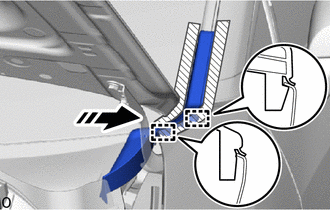

Attach the guide as shown in the illustration.


c.
B522850C01
0,0 0,0 false
V113147

Install in this Direction

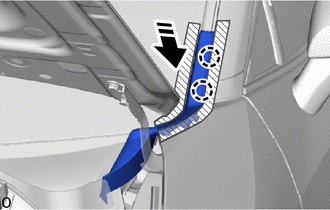

Attach the claw in the direction indicated by the arrow as shown in the illustration.

HINT:

Make sure that the claw is securely attached.



d.
B522851C01
0,0 0,0 false
V113147

Install in this Direction

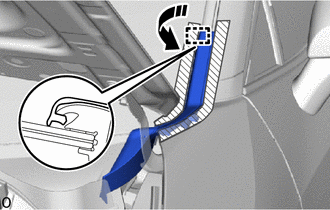

Attach the guide to install the front fender to cowl side seal LH as shown in the illustration.


e.

Remove the protective tape.


Hide 53866J 5.INSTALL FRONT FENDER TO COWL SIDE SEAL RH

HINT:

Use the same procedure described for the LH side.


Hide 6.INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH

a.
E268607C03
1.854,1.167 2.396,0.823 true 1.948,3.156 2.458,3.156 false 2.438,0.698 2.896,1.031 0.458,0.333 10 false *a 2.531,3.073 2.927,3.438 0.396,0.365 10 false *b

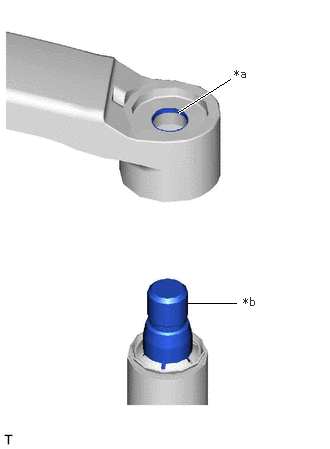

*a Windshield Wiper Arm Serrations
*b Windshield Wiper Motor Assembly Pivot Serrations


When reusing the windshield wiper arm and blade assembly RH:

i.

Clean the windshield wiper arm serrations.

NOTICE:

Do not grind the windshield wiper arm serrations.




b.

When reusing the windshield wiper motor assembly:

i.

Using a wire brush, clean the windshield wiper motor assembly pivot serrations.

NOTICE:

Do not grind the windshield wiper motor assembly pivot serrations.




c.

Turn the ignition switch to ON.


d.

Operate the windshield wiper motor assembly and stop at the automatic stop (park) position.


e.

Turn the ignition switch off.


f.
B522812C01
0.708,1.354 1.354,0.958 true 1.781,3.917 2.271,3.396 true 0.51,1.302 0.823,1.458 0.313,0.156 10 false *a 0.729,0.396 0.875,0.552 0.146,0.156 10 true A 0.615,0.615 0.74,0.771 0.125,0.156 10 true A 2.313,3.281 2.625,3.438 0.313,0.156 10 false *a 2.177,3.906 2.302,4.063 0.125,0.156 10 true A 2.083,4.135 2.208,4.292 0.125,0.156 10 true A
*a Ceramic Notch


Align the ceramic notch of the windshield glass sub-assembly with the edge of the windshield wiper arm and blade assembly RH to install the windshield wiper arm and blade assembly RH with the nut.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)

Standard Clearance:
Area Measurement
A 10 mm (0.394 in.)


HINT:

Hold the windshield wiper arm by hand while tightening the nut.



g.

Turn the ignition switch to ON.


h.

Operate the windshield wiper while spraying washer fluid onto the windshield glass. Make sure that the windshield wiper functions properly and the wiper does not come into contact with the vehicle body.


i.

Turn the ignition switch off.


j.

Raise the windshield wiper arm 2 times and check that the tip of the windshield wiper blade is within the range shown in the illustration.


Hide 7.INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH

a.
E268607C03
1.854,1.167 2.396,0.823 true 1.948,3.156 2.458,3.156 false 2.438,0.698 2.896,1.031 0.458,0.333 10 false *a 2.531,3.073 2.927,3.438 0.396,0.365 10 false *b
*a Windshield Wiper Arm Serrations
*b Windshield Wiper Motor Assembly Pivot Serrations


When reusing the windshield wiper arm and blade assembly LH:

i.

Clean the windshield wiper arm serrations.

NOTICE:

Do not grind the windshield wiper arm serrations.




b.

When reusing the windshield wiper motor assembly:

i.

Using a wire brush, clean the windshield wiper motor assembly pivot serrations.

NOTICE:

Do not grind the windshield wiper motor assembly pivot serrations.




c.

Turn the ignition switch to ON.


d.

Operate the windshield wiper motor assembly and stop at the automatic stop (park) position.


e.

Turn the ignition switch off.


f.
B558669C01
0.573,2.063 1.052,2.542 true 0.417,1.948 0.729,2.104 0.313,0.156 10 false *a 0.615,2.375 0.781,2.552 0.167,0.177 10 false A 0.615,2.604 0.781,2.781 0.167,0.177 10 false A
*a Ceramic Notch


Align the ceramic notch of the windshield glass sub-assembly with the edge of the windshield wiper arm and blade assembly LH to install the windshield wiper arm and blade assembly LH with the nut.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)

Standard Clearance:
Area Measurement
A 10 mm (0.394 in.)


HINT:

Hold the windshield wiper arm by hand while tightening the nut.



g.

Turn the ignition switch to ON.


h.

Operate the windshield wiper while spraying washer fluid onto the windshield glass. Make sure that the windshield wiper functions properly and the wiper does not come into contact with the vehicle body.


i.

Turn the ignition switch off.


j.

Raise the windshield wiper arm 2 times and check that the tip of the windshield wiper blade is within the range shown in the illustration.


Hide 85292B 8.INSTALL FRONT WIPER ARM HEAD CAP

a.
B522852

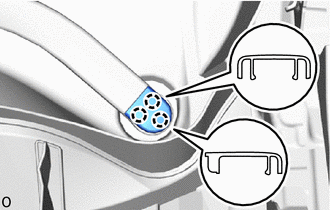

Attach the claw and install the front wiper arm head cap.

HINT:

Use the same procedure for the RH and LH sides.



Hide 55752 9.INSTALL COWL VENTILATOR SPLASH SHIELD

HINT:

Perform this procedure only when replacement of the cowl ventilator splash shield is necessary.


a.
B522846C01
0,0 0,0 false
V113147

Install in this Direction

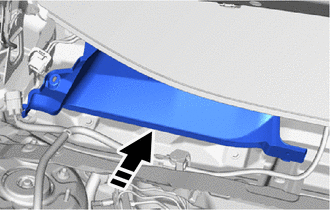

Temporarily install the cowl ventilator splash shield as shown in the illustration.


b.
B522847

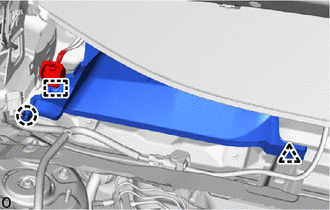

Attach the clip, claw and clamp to install the cowl ventilator splash shield.


c.
B522826

Connect the connector.


Hide 53383 10.INSTALL HOOD TO COWL TOP SEAL

HINT:

Perform this procedure only when replacement of the hood to cowl top seal is necessary.


a.

Attach the clip and install the hood to cowl top seal.

B522825
