WIPER / WASHER  FRONT WIPER MOTOR  REMOVAL

0,0 0,0 false

Protective Tape

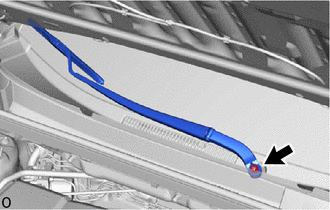

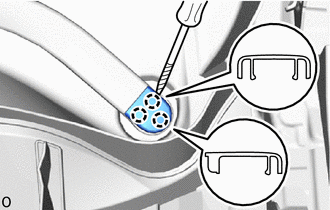

Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and remove the front wiper arm head cap.

HINT:

Use the same procedure for the RH and LH sides.

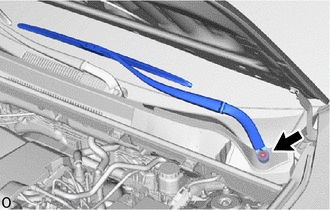

Remove the nut and the windshield wiper arm and blade assembly LH.

Remove the nut and the windshield wiper arm and blade assembly RH.

0,0 0,0 false

Protective Tape

Put protective tape around the front fender to cowl side seal LH as shown in the illustration.

0,0 0,0 false

Remove in this Direction

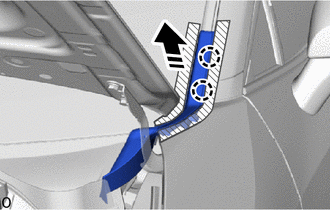

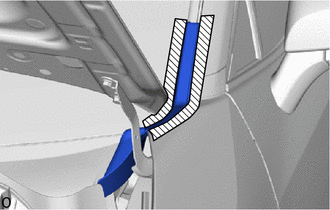

Detach the guide as shown in the illustration.

0,0 0,0 false

Remove in this Direction

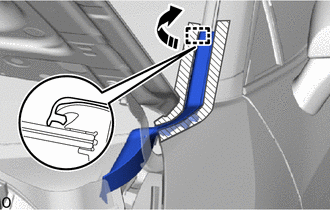

Detach the claw.

NOTICE:

If removed using tools, the claw of the front fender to cowl side seal LH may be deformed. Therefore, quickly detach the claw by hand in the direction of the arrow shown in the illustration.

0,0 0,0 false

Remove in this Direction

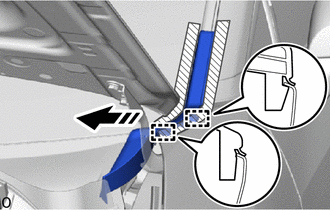

Detach the guide as shown in the illustration.

0,0 0,0 false

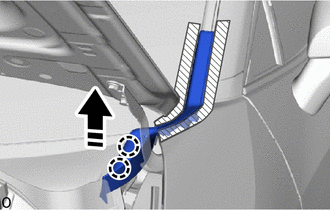

Remove in this Direction

Detach the claw and remove the front fender to cowl side seal LH in the direction indicated by the arrow as shown in the illustration.

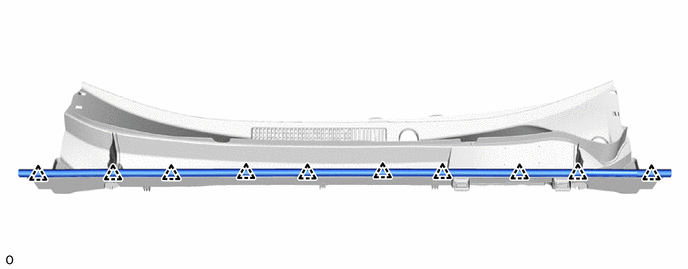

Remove the 2 clips.

1.99,1.969 2.729,1.729 true 0.958,1.646 1.208,1.885 0.25,0.24 10 false A 2.74,1.604 2.99,1.844 0.25,0.24 10 false *a

*a	Edge of Protective Tape
	Protective Tape

Apply protective tape to the moulding remover as shown in the illustration.

Standard Dimension:

Location	Measurement
A	4.0 mm (0.157 in.)

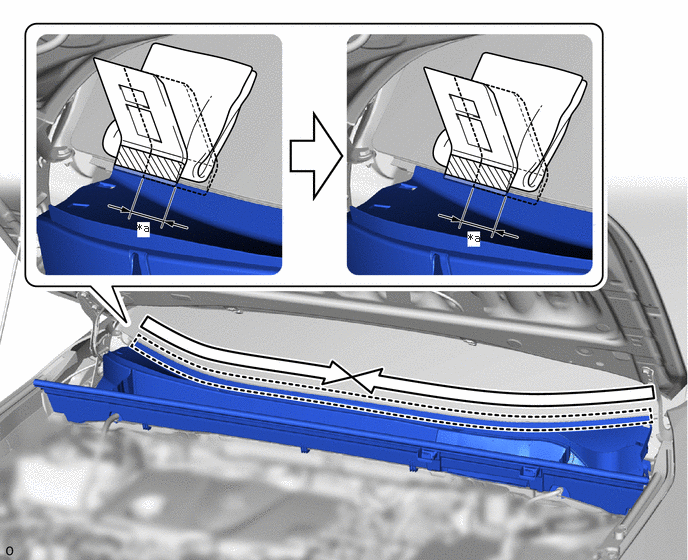

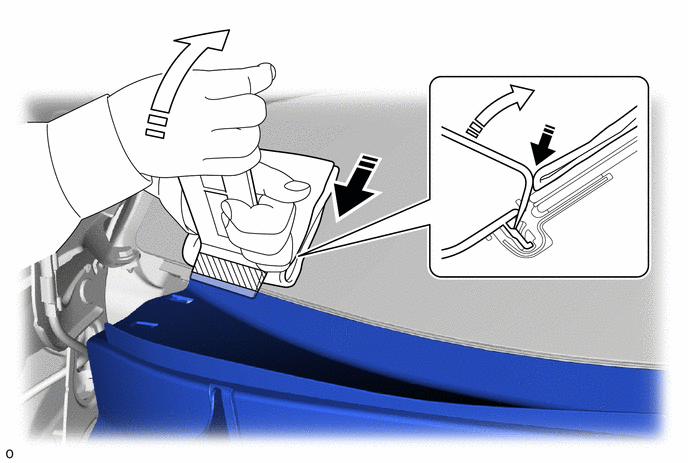

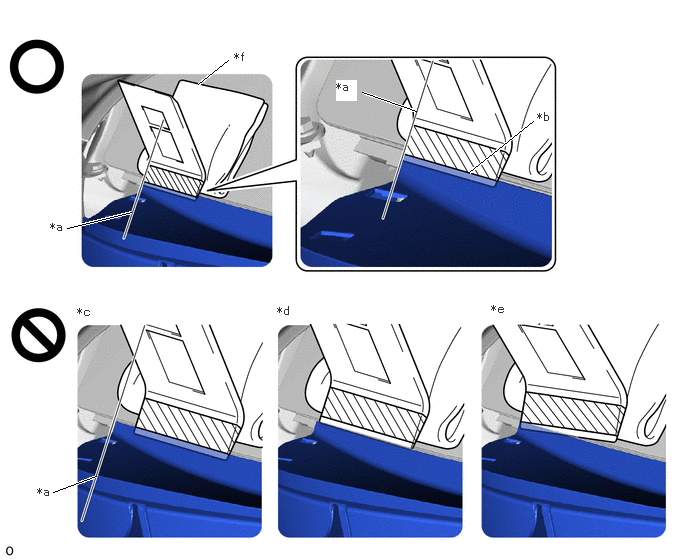

Insert the moulding remover at the starting position until the edge of the protective tape is aligned with the cowl top ventilator louver sub-assembly as shown in the illustration.

0.698,2.375 1.365,2.208 true 2.063,0.875 2.375,0.625 true 0.552,5.125 1,4.958 true 4.885,1.792 5.552,1.26 true 3.771,0.958 4.333,1.156 true 0.521,2.292 0.865,2.625 0.344,0.333 10 false *a 5.594,1.146 5.906,1.302 0.313,0.156 10 false *b 0.802,3.177 1.094,3.427 0.292,0.25 10 false *c 2.885,3.167 3.198,3.406 0.313,0.24 10 false *d 5.115,3.146 5.427,3.385 0.313,0.24 10 false *e 2.438,0.521 2.698,0.729 0.26,0.208 10 false *f 0.385,5.052 0.729,5.385 0.344,0.333 10 false *a 3.5,0.833 3.719,1.052 0.219,0.219 10 true *a

*a	Starting Position: Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned	*b	Inserted to Edge of Protective Tape
*c	Not Inserted at Starting Position	*d	Not Inserted to Edge of Protective Tape
*e	Not Inserted Straight	*f	Piece of Cloth or Equivalent
	Protective Tape	-	-

NOTICE:

·

To prevent damage to the windshield glass, set a piece of cloth between the moulding remover and windshield glass.

·

Make sure to insert the moulding remover until the edge of protective tape is aligned with the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

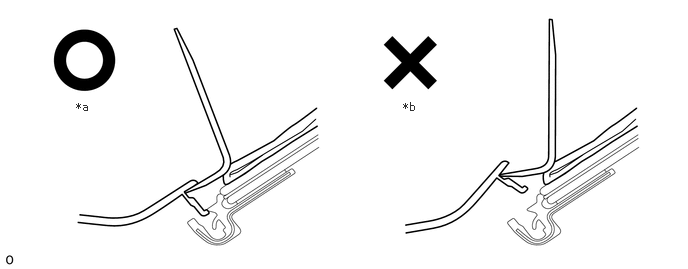

While pushing the moulding remover in the direction indicated by the arrow (A), push the moulding remover in the direction indicated by the arrow (B) to disengage the cowl top ventilator louver sub-assembly.

0,0 0,0 false

Push in this Direction (A)

Push in this Direction (B)

NOTICE:

·

Make sure to repeat this procedure to disengage the entire cowl top ventilator louver sub-assembly.

·

Make sure to perform this procedure while pushing the moulding remover in the direction indicated by the arrow (A), otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

·

Make sure not to pry the cowl top ventilator louver sub-assembly more than necessary to disengage it, otherwise it may be deformed or damaged.

0.792,1.042 1.104,1.292 0.313,0.25 10 false *a 4.198,1.042 4.438,1.281 0.24,0.24 10 false *b

*a

Pried Until Disengaged

*b

Pried Excessively

Using the moulding remover, repeatedly pry up the cowl top ventilator louver sub-assembly while gradually moving the moulding remover half of its width laterally toward the center of the vehicle and then repeat the procedure from the other side of the vehicle as shown in the illustration to disengage the cowl top ventilator louver sub-assembly from the windshield glass.

1.427,2.302 1.792,2.583 0.365,0.281 10 false *a 4.875,2.406 5.177,2.615 0.302,0.208 10 false *a

*a	Half Width of Moulding Remover	-	-
	Order of Removal	-	-

NOTICE:

·

Make sure to move the moulding remover only half of its width laterally after prying up the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be damaged or deformed.

·

Make sure not to lift up or pull the cowl top ventilator louver sub-assembly by hand before it is completely disengaged, otherwise it may be deformed or damaged.

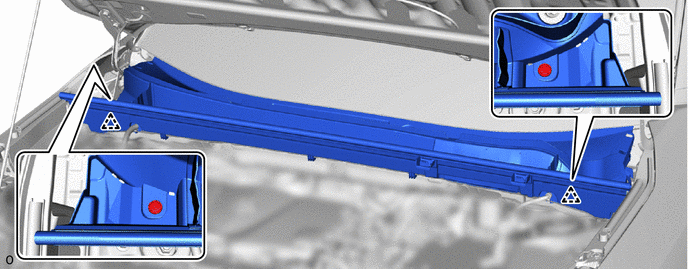

Detach the guide and remove the cowl top ventilator louver sub-assembly as shown in the illustration.

0,0 0,0 false

Remove in this Direction

-

-

0,0 0,0 false

	Bolt
	Connector

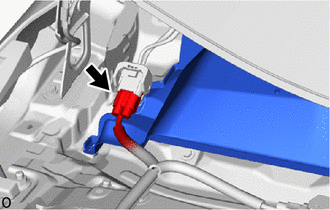

Disconnect the connector.

1.104,1.729 1.417,1.865 true 1.469,1.802 1.677,2.01 0.208,0.208 10 true *1

*1	Motor Grommet
	Remove in this Direction (1)
	Remove in this Direction (2)

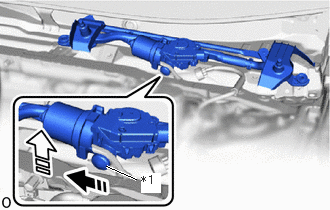

Detach the motor grommet as shown in the illustration.

1.135,0.792 0.573,0.542 false 0.385,0.438 0.719,0.698 0.333,0.26 10 false *a

*a

Cloth

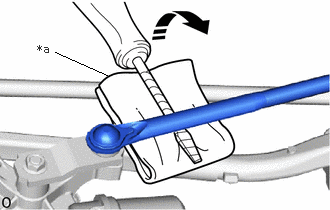

Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 1 windshield wiper link rod from the windshield wiper motor crank pivot as shown in the illustration.

NOTICE:

Wrap the wiper link assembly in cloth to prevent it from being damaged.

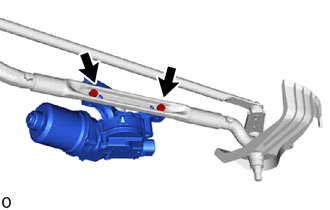

Using a T30 "TORX" socket wrench, remove the 2 "TORX" bolts and windshield wiper motor assembly.

Disconnect the connector.

Detach the clamp and claw.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

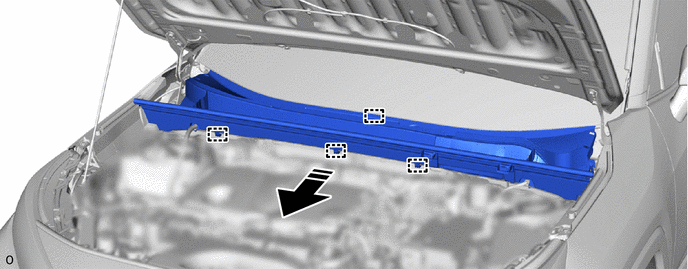

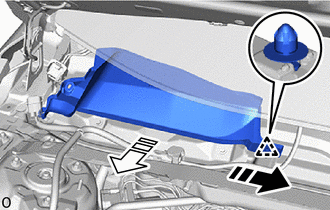

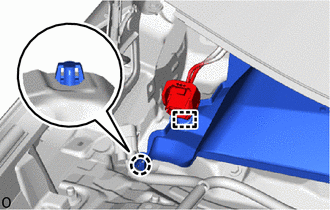

Pull the cowl ventilator splash shield in the direction of the arrow indicated in the illustration to detach the clip.

0,0 0,0 false

Protective Tape

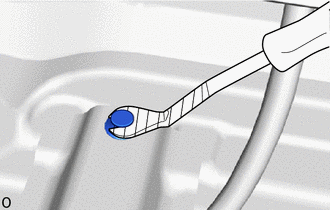

Using a clip remover with its tip wrapped with protective tape, detach the clip remaining on the vehicle and install the cowl ventilator splash shield.

Detach the clip and remove the hood to cowl top seal.
