SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 1.INSPECT REAR SEAT OUTER BELT ASSEMBLY

a.

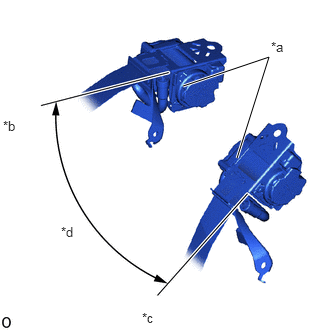

B554735C01
1.906,0.896 2.802,0.594 2.802,0.594 2.469,1.646 true 2.823,0.406 3.135,0.604 0.313,0.198 10 false *a 0.031,1.229 0.344,1.427 0.313,0.198 10 false *b 0.635,2.333 0.948,2.531 0.313,0.198 10 false *d 1.479,3.229 1.667,3.427 0.188,0.198 10 false *c
*a Retractor
*b Unlock
*c Lock
*d 45°


Before installing the rear seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear seat outer belt assembly.
