MIRROR (EXT) OUTER MIRROR SWITCH INSTALLATION

PROCEDURE

Hide Display 84870A 1.INSTALL OUTER MIRROR SWITCH ASSEMBLY

a.

B525838C01

0,0 0,0 false

V113147

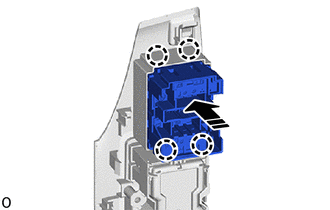

Install in this Direction

Attach the claw to install the outer mirror switch assembly.

Hide Display 2.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
