RM36D0EC _59 Vehicle Exterior _083099 MIRROR (EXT) _0400991 OUTER REAR VIEW MIRROR COVER A

MIRROR (EXT)  OUTER REAR VIEW MIRROR COVER  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 87945 2.REMOVE OUTER MIRROR COVER LH

a.

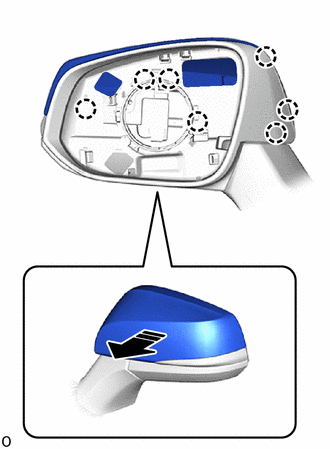

B525832C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the outer mirror cover LH.


Hide 8794A 3.REMOVE NO. 2 OUTER MIRROR COVER LH

a.
B560495

w/ Panoramic View Monitor System:

i.

Detach the clamp.


ii.

Disconnect the connector.



b.
B525845

Remove the 2 screws.


c.

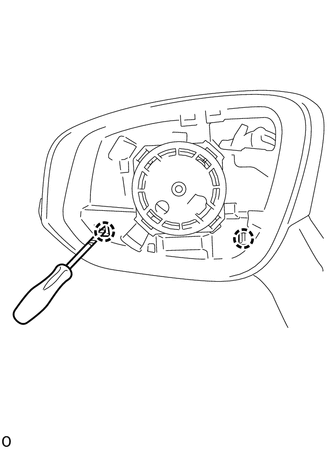

B525847C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



d.

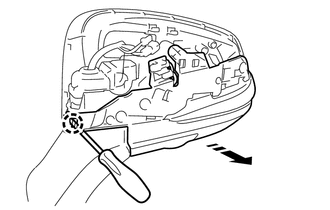

B525848C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 2 outer mirror cover LH.

HINT:

Tape the thin-bladed screwdriver tip before use.



e.

Disconnect the side turn signal light connector.
