SLIDING ROOF / CONVERTIBLE  SLIDING ROOF HOUSING(for Panoramic Moon Roof)  INSPECTION

1.51,2.354 1.948,2.583 0.438,0.229 1.542,0.354 1.802,0.563 0.26,0.208 0.698,0.875 1.208,1.021 true 2.177,1.01 2.625,1.01 true 0.708,1.49 1.135,1.333 true 2.49,3.146 2.844,2.854 true 2.479,3.51 2.885,3.792 true 1.99,3.146 2.51,2.531 true 1.604,0.375 1.76,0.573 0.156,0.198 10 false A 1.604,2.396 2.063,2.594 0.458,0.198 10 false P16 0.469,0.781 0.781,0.979 0.313,0.198 10 false +B 0.365,1.396 0.823,1.594 0.458,0.198 10 false LLIN 2.708,0.927 2.927,1.177 0.219,0.25 10 false E 0.083,0.094 0.396,0.292 0.313,0.198 10 false *a 2.594,2.396 3.052,2.594 0.458,0.198 10 false MPX2 2.948,2.74 3.26,2.938 0.313,0.198 10 false B 2.948,3.708 3.167,3.958 0.219,0.25 10 false E

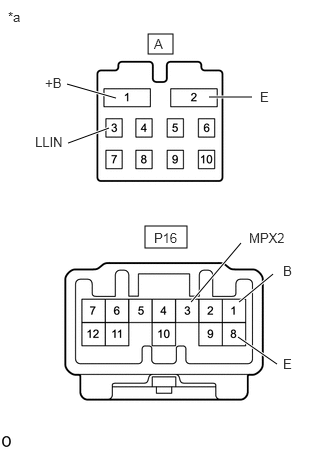

*a	Component without harness connected (No. 2 Roof Wire)

Measure the resistance between each terminal of the spiral cable sub-assembly according to the value (s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
P16-1 (B) - A-1 (+B)	Always	Below 1 Ω
P16-3 (MPX2) - A-3 (LLIN)	Always	Below 1 Ω
P16-8 (B) - A-2 (E)	Always	Below 1 Ω

If the result is not as specified, replace the No. 2 roof wire.
