EXTERIOR PANELS / TRIM  REAR WHEEL HOUSE PLATE  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

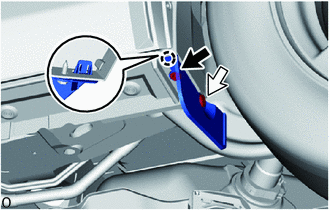

Hide 65632D 1.REMOVE REAR WHEEL FRONT HOUSE PLATE LH

a.
B525749C01
0,0 0,0 false
V100135

Screw
V100136

Clip


Remove the screw.


b.

Remove the clip.


c.

Detach the claw and remove the rear wheel front house plate LH.
