EXTERIOR PANELS / TRIM  ROOF DRIP SIDE FINISH MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 75554A 2.REMOVE REAR ROOF DRIP SIDE FINISH MOULDING LH (w/ Roof Garnish)

a.

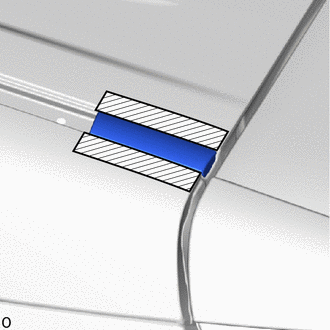

B525853C01
0,0 0,0 false
V100155

Protective Tape


Put protective tape around the rear roof drip side finish moulding LH.


b.

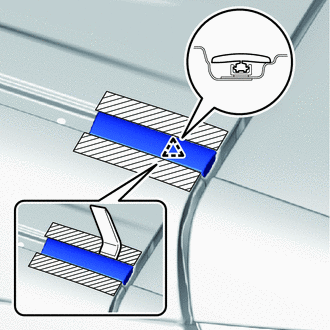

B552544

Using moulding remover D, detach the clip and remove the rear roof drip side finish moulding LH.

NOTICE:
·

Do not remove the roof drip side finish moulding clip.

·

If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.




Hide 75552 3.REMOVE ROOF DRIP SIDE FINISH MOULDING LH (w/o Roof Garnish)

a.
B525859C01
0,0 0,0 false
V100155

Protective Tape


Put protective tape around the roof drip side finish moulding LH.


b.

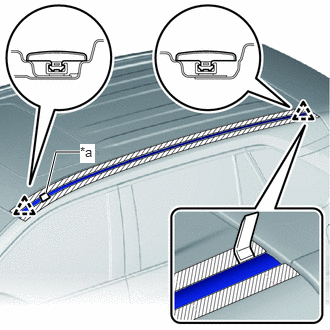

B552545C01
0.479,2.01 0.583,1.583 0.583,1.583 0.917,1.583 true 0.833,1.5 0.99,1.698 0.156,0.198 10 true *a
*a Double-sided Tape


Using moulding remover D, detach the clip and double-sided tape and remove the roof drip side finish moulding LH.

NOTICE:
·

Do not remove the roof drip side finish moulding clips.

·

If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
