EXTERIOR PANELS / TRIM  REAR DOOR BELT MOULDING  COMPONENTS

ILLUSTRATION

1.677,6.573 1.917,7 1.917,7 2.417,7 false 2.594,2.635 3.01,2.635 3.01,2.635 3.177,3.302 false 0.833,5.167 1.25,5.167 1.25,5.167 1.417,5.583 false 1.083,2.167 1.5,2.167 1.5,2.167 1.667,2.833 false 5.229,6.792 5.469,7.219 5.469,7.219 5.969,7.219 false 4.188,5.448 4.74,5.448 false 2.469,6.917 2.781,7.115 0.313,0.198 10 false *1 2.406,2.552 2.719,2.75 0.313,0.198 10 false *2 0.646,5.094 0.958,5.292 0.313,0.198 10 false *3 0.906,2.094 1.219,2.292 0.313,0.198 10 false *4 4.833,5.354 5.146,5.552 0.313,0.198 10 false *5 2.448,5.99 2.906,6.188 0.458,0.198 10 false x 2 6.073,7.125 6.385,7.323 0.313,0.198 10 false *6

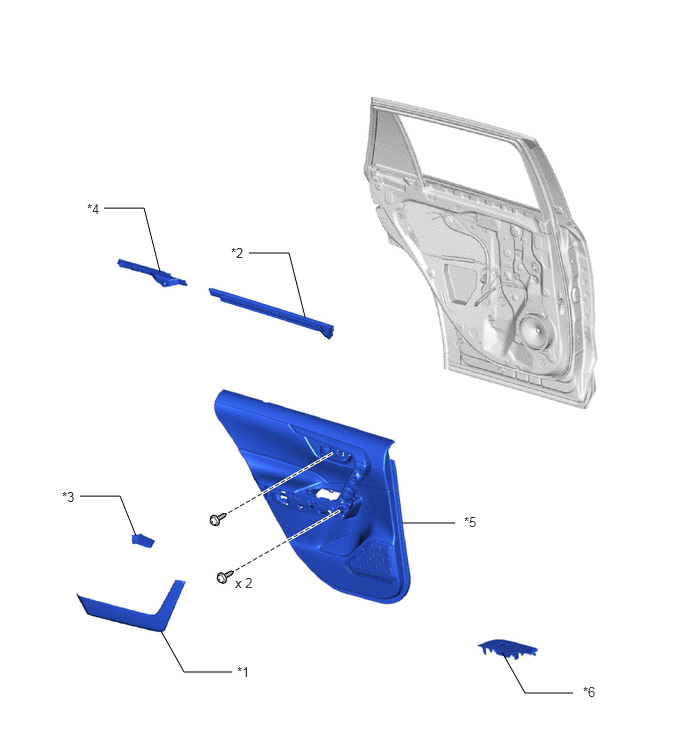

*1	DOOR ASSIST GRIP COVER LH	*2	REAR DOOR INNER GLASS WEATHERSTRIP LH
*3	REAR DOOR INSIDE HANDLE BEZEL LH	*4	REAR DOOR REAR BELT SEAL LH
*5	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	*6	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

ILLUSTRATION

1.167,5.198 2.24,5.427 1.073,0.229 4.458,2.479 5.531,2.708 1.073,0.229 4.25,1.333 4.5,0.917 4.5,0.917 5.083,0.917 false 5.25,3.25 5.5,2.833 5.5,2.833 6.083,2.833 false 1.167,7.417 1.75,7.417 1.75,7.417 2,7 false 1.417,2.083 2,2.083 2,2.083 2.25,1.667 false 2.5,6.167 2.75,5.75 2.75,5.75 3.333,5.75 false 1.042,3.781 0.771,4.281 0.771,4.281 0.49,4.281 false 1.281,3.385 1.531,2.969 1.531,2.969 2.115,2.969 false 2.5,3.417 2.75,3 2.75,3 3.333,3 false 0.833,4.917 0.958,5.313 0.958,5.313 1.167,5.313 false 3.99,2.604 4.448,2.604 false 3.25,6.99 3.427,6.667 3.427,6.667 3.823,6.667 false 6.135,2.74 6.448,2.938 0.313,0.198 10 false *1 3.385,2.906 3.698,3.104 0.313,0.198 10 false *2 2.177,2.865 2.49,3.063 0.313,0.198 10 false *3 5.156,0.833 5.469,1.031 0.313,0.198 10 false *4 1.25,2.01 1.563,2.208 0.313,0.198 10 false *5 0.885,7.333 1.198,7.531 0.313,0.198 10 false ●*6 0.292,4.188 0.604,4.385 0.313,0.198 10 false *7 3.896,2.688 4.208,2.885 0.313,0.198 10 false x 2 3.406,5.667 3.719,5.865 0.313,0.198 10 false ●*8 1,4.844 1.313,5.042 0.313,0.198 10 false x 2 1.26,5.24 2.333,5.417 1.073,0.177 8 false 8.5 (87, 75 in.*lbf) 4.531,2.531 5.688,2.729 1.156,0.198 8 false 8.0 (82, 71 in.*lbf) 3.875,6.594 4.188,6.792 0.313,0.198 10 false *9

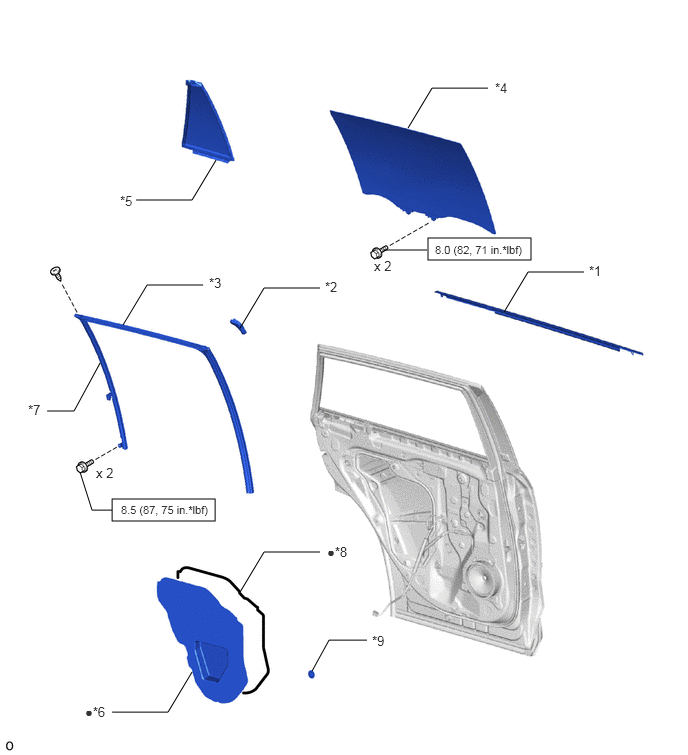

*1	REAR DOOR BELT MOULDING ASSEMBLY LH	*2	REAR DOOR FRAME GARNISH LH
*3	REAR DOOR GLASS RUN LH	*4	REAR DOOR GLASS SUB-ASSEMBLY LH
*5	REAR DOOR QUARTER WINDOW GLASS LH	*6	REAR DOOR SERVICE HOLE COVER LH
*7	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH	*8	BUTYL TAPE
*9	HOLE PLUG	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
