RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400753 REAR SPOILER A

EXTERIOR PANELS / TRIM  REAR SPOILER  INSTALLATION


PROCEDURE

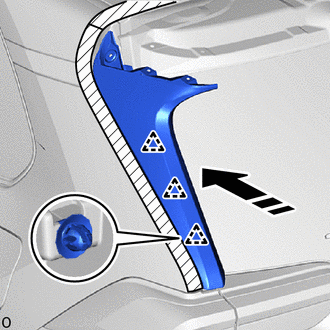

Hide 76088B 1.INSTALL REAR SIDE SPOILER SUB-ASSEMBLY LH

a.
B525580C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip and install the rear side spoiler sub-assembly LH as shown in the illustration.


Hide 76087B 2.INSTALL REAR SIDE SPOILER SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 76085 3.INSTALL REAR SPOILER SUB-ASSEMBLY

a.

When reusing the rear spoiler sub-assembly:

i.

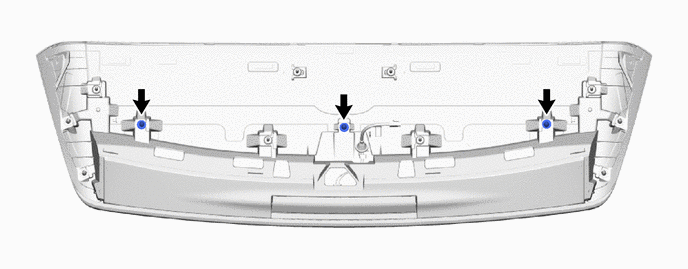

Install new 3 clips.

B585305



b.

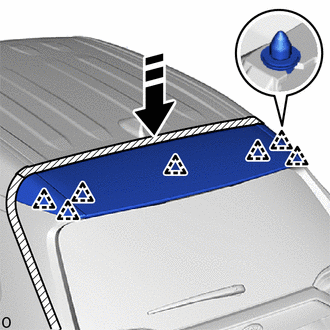

B525578C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip to install the rear spoiler sub-assembly as shown in the illustration.


c.

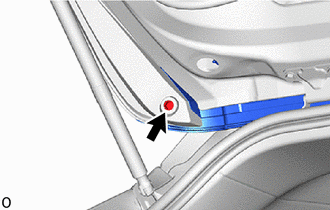

B525576

Install the screw.

HINT:

Use the same procedure for the screw on the other side.



d.

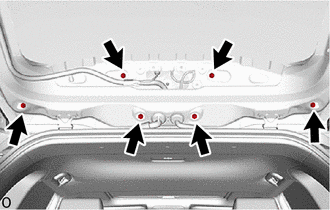

B525945

Install the 6 nuts.

Torque:
6.0 N*m (61 kgf*cm, 53 in.*lbf)


e.

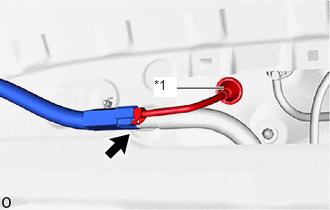

B525793C02
2.333,0.917 1.75,0.917 true 1.604,0.802 1.844,1.01 0.24,0.208 10 true *1
*1 Grommet


Attach the grommet.


f.

Connect the connector.


g.

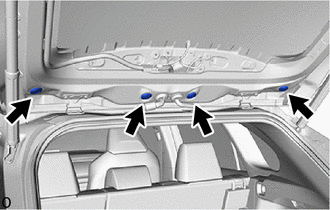

B525792

Install the 4 hole plugs.


h.

Remove the protective tape.


Hide 67937B 5.INSTALL BACK DOOR SIDE GARNISH RH

HINT:

Use the same procedure described for the LH side.
