RM36D0EC _58 Vehicle Interior _083094 THEFT DETERRENT / KEYLESS ENTRY _0400679 ELECTRICAL KEY OSCILLATOR(for Luggage Compartment) A

THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Luggage Compartment) INSTALLATION

PROCEDURE

Hide Display 899A0 1.INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

a.

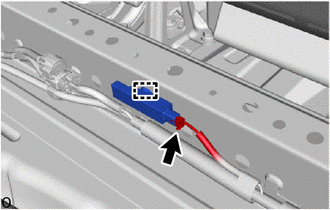

E405785

Attach the clamp to install the No. 1 indoor electrical key antenna assembly.

NOTICE:: Do not reuse parts if dropped or subjected to any strong impact.

b.

Connect the connector.

Hide Display 58577E 2.INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201910,202004,_58,_083106,_0400609,RM100000001J8OX_01_0036,202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0036,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0036,

Hide Display 3.INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY RH

a.

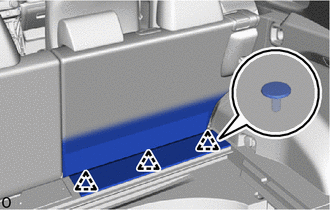

E407002

Attach the new 3 clips to connect the rear seatback board carpet assembly RH.

Hide Display 4.INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY LH

a.

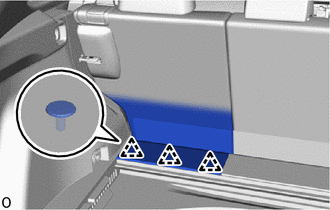

E407001

Attach the new 3 clips to connect the rear seatback board carpet assembly LH.

Hide Display 58410B 5.INSTALL DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION201910,202004,_58,_083106,_0400609,RM100000001J8OX_01_0043,202004,202304,_58,_083106,_0400609,RM100000001MYUI_01_0043,202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0043,
