RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400602 BACK DOOR COURTESY SWITCH G

LIGHTING (INT)  BACK DOOR COURTESY SWITCH  INSPECTION


PROCEDURE

Hide 69350P 1.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/o Power Door Lock)

a.

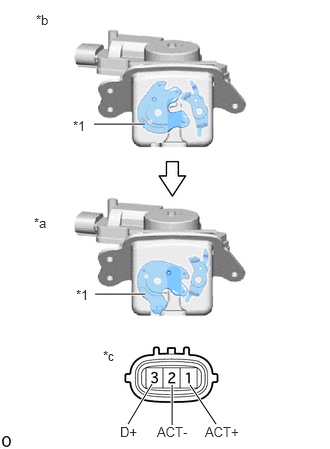

E407983C02
1.51,1.292 0.979,1.292 true 1.51,3.063 0.99,3.063 true 1.333,4.417 1.583,4 true 2.25,4.417 1.979,4.01 true 1.792,4.427 1.792,4.01 true 0.354,2.24 0.667,2.438 0.313,0.198 10 false *a 1.073,3.625 1.385,3.823 0.313,0.198 10 false *c 0.375,0.125 0.688,0.323 0.313,0.198 10 false *b 1.25,4.417 1.5,4.615 0.25,0.198 10 false D+ 1.635,4.417 2.25,4.615 0.615,0.198 10 false ACT- 2.135,4.417 2.75,4.615 0.615,0.198 10 false ACT+ 0.792,2.99 1.104,3.188 0.313,0.198 10 false *1 0.76,1.229 1.073,1.427 0.313,0.198 10 false *1
*1 Latch
*a Open
*b Close
*c Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)


Check the operation of the door lock motor.

i.

Move the back door lock with courtesy light switch assembly to the close position.


ii.

Apply auxiliary battery voltage to the door lock motor assembly and check the operation of the door lock motor.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → 1 (ACT+)
Auxiliary battery negative (-) → 2 (ACT-) 		Close → Open


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



b.

Check the operation of the door courtesy switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
2 (ACT-) - 3 (D+) Close 10 kΩ or higher
2 (ACT-) - 3 (D+) Open Below 1 Ω


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



Hide 69350P 2.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/ Power Door Lock)

a.

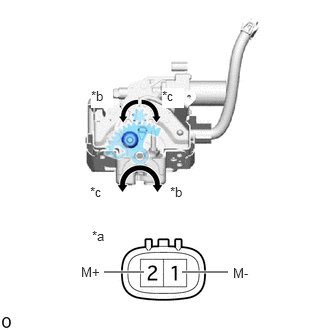

E407984C02
1.083,2.833 1.5,2.833 true 1.896,2.833 2.375,2.833 true 0.948,0.917 1.177,1.125 0.229,0.208 10 true *b 1.688,0.917 1.917,1.125 0.229,0.208 10 true *c 0.958,2.375 1.188,2.583 0.229,0.208 10 false *a 2.427,2.76 2.74,2.958 0.313,0.198 10 false M- 0.844,2.75 1.156,2.948 0.313,0.198 10 false M+ 1.771,1.917 2,2.125 0.229,0.208 10 true *b 0.938,1.917 1.167,2.125 0.229,0.208 10 true *c
*a Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)
*b Close Operation Direction
*c Open Operation Direction


Check the operation.

i.

Apply auxiliary battery voltage and check the operation of the closer motor.

OK:
Battery Connection Result
Auxiliary battery positive (+) - 1 (M-)
Auxiliary battery negative (-) - 2 (M+) 		Open Operation
Auxiliary battery positive (+) - 2 (M+)
Auxiliary battery negative (-) -1 (M-) 		Close Operation


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



b.

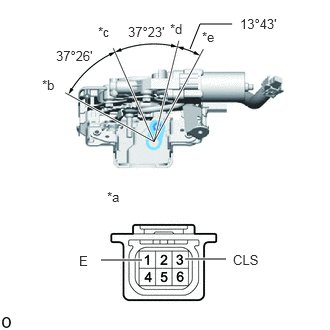

E407985C04
1.052,2.708 1.479,2.708 true 1.927,2.698 2.354,2.698 true 1.979,0.51 2.083,0.25 2.083,0.25 2.417,0.25 true 2.104,0.302 2.417,0.5 0.313,0.198 10 false *e 1.771,0.219 2.083,0.417 0.313,0.198 10 false *d 1.021,0.25 1.333,0.448 0.313,0.198 10 false *c 0.438,0.802 0.75,1 0.313,0.198 10 false *b 2.427,2.625 2.885,2.823 0.458,0.198 10 false CLS 0.823,2.635 1.281,2.833 0.458,0.198 10 false E 0.583,0.5 1.5,0.698 0.917,0.198 10 false 37°26' 1.333,0.25 2.25,0.448 0.917,0.198 10 false 37°23' 2.5,0.167 3.417,0.365 0.917,0.198 10 false 13°43' 1.115,1.969 1.427,2.167 0.313,0.198 10 false *a
*a Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)
*b Open Position
*c Half-latch Position
*d Full-latch Position
*e Overstroke Position


Check the resistance of the half latch switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (E) - 3 (CLS) Open position Below 1 Ω
1 (E) - 3 (CLS) Open position → Half-latch position Below 1 Ω → 10 kΩ or higher
1 (E) - 3 (CLS) Half-latch position 10 kΩ or higher
1 (E) - 3 (CLS) Full-latch position 10 kΩ or higher
1 (E) - 3 (CLS) Overstroke position 10 kΩ or higher


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



c.

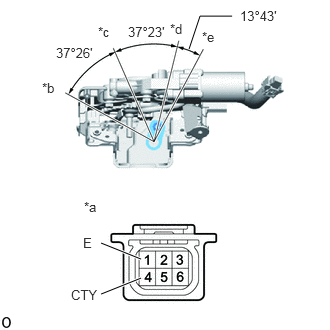

E407985C05
1.052,3.063 1.469,2.896 true 1.052,2.531 1.469,2.698 true 1.969,0.51 2.083,0.167 2.083,0.167 2.417,0.167 true 2.104,0.302 2.417,0.5 0.313,0.198 10 false *e 1.771,0.219 2.083,0.417 0.313,0.198 10 false *d 1.021,0.25 1.333,0.448 0.313,0.198 10 false *c 0.438,0.833 0.75,1.031 0.313,0.198 10 false *b 0.74,2.99 1.198,3.188 0.458,0.198 10 false CTY 0.865,2.448 1.323,2.646 0.458,0.198 10 false E 0.583,0.469 1.5,0.667 0.917,0.198 10 false 37°26' 1.333,0.25 2.25,0.448 0.917,0.198 10 false 37°23' 2.5,0.083 3.417,0.281 0.917,0.198 10 false 13°43' 0.875,2.073 1.188,2.271 0.313,0.198 10 false *a
*a Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)
*b Open Position
*c Half-latch Position
*d Full-latch Position
*e Overstroke Position


Check the resistance of the full latch switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (CTY) - 1 (E) Open position Below 1 Ω
4 (CTY) - 1 (E) Half-latch position Below 1 Ω
4 (CTY) - 1 (E) Half-latch position → Full-latch position Below 1 Ω → 10 kΩ or higher
4 (CTY) - 1 (E) Full-latch position 10 kΩ or higher
4 (CTY) - 1 (E) Overstroke position 10 kΩ or higher


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



d.

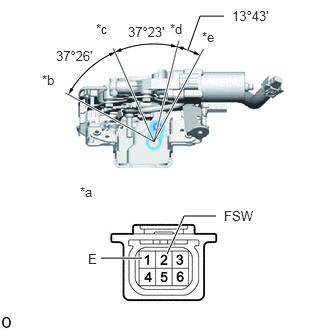

E407985C06
1.74,2.646 1.917,2.25 1.917,2.25 2.25,2.25 true 1.052,2.688 1.479,2.688 true 1.958,0.521 2.083,0.167 2.083,0.167 2.333,0.167 true 2.104,0.302 2.417,0.5 0.313,0.198 10 false *e 1.771,0.219 2.083,0.417 0.313,0.198 10 false *d 1,0.219 1.313,0.417 0.313,0.198 10 false *c 0.438,0.75 0.75,0.948 0.313,0.198 10 false *b 2.333,2.167 2.792,2.365 0.458,0.198 10 false FSW 0.917,2.615 1.375,2.813 0.458,0.198 10 false E 0.583,0.5 1.5,0.698 0.917,0.198 10 false 37°26' 1.333,0.25 2.25,0.448 0.917,0.198 10 false 37°23' 2.417,0.083 3.333,0.281 0.917,0.198 10 false 13°43' 0.833,1.917 1.146,2.115 0.313,0.198 10 false *a
*a Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)
*b Open Position
*c Half-latch Position
*d Full-latch Position
*e Overstroke Position


Check the resistance of the pawl switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
2 (FSW) - 1 (E) Open position 10 kΩ or higher
2 (FSW) - 1 (E) Open position → Half-latch position 10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
2 (FSW) - 1 (E) Half-latch position 10 kΩ or higher
2 (FSW) - 1 (E) Half-latch position → Full-latch position 10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
2 (FSW) - 1 (E) Full-latch position 10 kΩ or higher
2 (FSW) - 1 (E) Overstroke position 10 kΩ or higher


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



e.

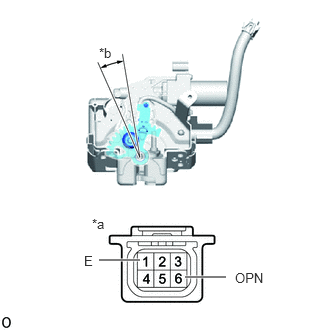

E407986C02
1.031,2.708 1.458,2.708 true 1.927,2.885 2.354,2.885 true 2.448,2.813 2.906,3.01 0.458,0.198 10 false OPN 0.875,2.635 1.333,2.833 0.458,0.198 10 false E 0.958,2.25 1.271,2.448 0.313,0.198 10 false *a 1.031,0.469 1.344,0.667 0.313,0.198 10 false *b
*a Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)
*b Sector Gear in Neutral Position


Check the resistance of the sector switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6 (OPN) - 1 (E) Sector gear in neutral position
(Sector switch on) 		Below 1 Ω
6 (OPN) - 1 (E) Sector gear not in neutral position
(Sector switch off) 		10 kΩ or higher


If the result is not as specified, replace the back door lock with courtesy light switch assembly.
