RM36D0EC _58 Vehicle Interior _083095 LIGHTING (INT) _0400598 FOOTWELL LIGHT(for Driver Side) A

LIGHTING (INT) FOOTWELL LIGHT(for Driver Side) REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201910,202004,_58,_083106,_0400609,RM100000001J8OU_01_0069,202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0069,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0069,

Hide Display 62112 2.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0028,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0028,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0028,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0028,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0028,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0028,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0002,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0002,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0002,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0002,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0002,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0002,

Hide Display 81080S 4.REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

a.

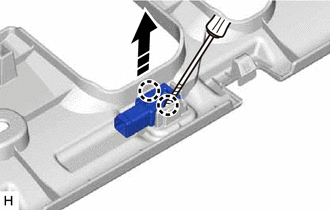

E394645C01

0,0 0,0 false

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the No. 1 interior illumination light assembly LH.

HINT:: Tape the thin-bladed screwdriver tip before use.
