RM38N0EC _58 Vehicle Interior _111840 SEAT BELT _0505353 SEAT BELT WARNING SYSTEM G

SEAT BELT  SEAT BELT WARNING SYSTEM  ON-VEHICLE INSPECTION


PROCEDURE

Hide 1.INSPECT DRIVER SEAT BELT WARNING LIGHT

HINT:

The seat belt warning light on the combination meter assembly is used for both the driver seat and front passenger seat.


a.

Turn the ignition switch to ON.


b.

Check that the seat belt warning light (in the combination meter assembly) turns on with the driver seat belt unfastened and under the following conditions.

i.

Shift position in P.


ii.

The parking brake is not released.



c.

Lift the vehicle.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>VEHICLE LIFT AND SUPPORT LOCATIONS


d.

Turn the ignition switch to ON (READY). (for HV Model)


e.

Start the engine. (for Gasoline Model)


f.

Check the status of the seat belt warning light (in the combination meter assembly) under the conditions below.

i.

Check that the seat belt warning light (in the combination meter assembly) blinks when the driver seat belt is unfastened, the shift position is not in P and the parking brake is released.


ii.

Check that the seat belt warning light (in the combination meter assembly) blinks when the vehicle is driven at approximately 5 km/h (3 mph) or higher with the driver seat belt unfastened.

Check that after 106 seconds, the seat belt warning light (in the combination meter assembly) changes from blinking to on.


iii.

Check that the seat belt warning light (in the combination meter assembly) changes to on when the seat belt warning light (in the combination meter assembly) is blinking, the vehicle speed is 1.75 km/h (1 mph) or less and the shift position is changed to P.


iv.

Check that the seat belt warning light (in the combination meter assembly) changes to on when the seat belt warning light (in the combination meter assembly) is blinking, the vehicle speed is 1.75 km/h (1 mph) or less and the parking brake is not released.


v.

Check that the seat belt warning light (in the combination meter assembly) turns off when the driver seat belt is fastened with the seat belt warning light (in the combination meter assembly) on or blinking.



Hide 2.INSPECT FRONT PASSENGER SEAT BELT WARNING LIGHT

HINT:

The seat belt warning light on the combination meter assembly is used for both the driver seat and front passenger seat.


a.

Turn the ignition switch to ON.


b.

Check that the seat belt warning light (in the combination meter assembly) turns on with a passenger seated in the passenger seat, the passenger seat belt unfastened and under the following conditions.

i.

Change the shift position to P.


ii.

The parking brake is not released.



c.

Fasten the driver seat belt.


d.

Lift the vehicle.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>VEHICLE LIFT AND SUPPORT LOCATIONS


e.

Turn the ignition switch to ON (READY). (for HV Model)


f.

Start the engine. (for Gasoline Model)


g.

Place a weight of 20 kg (44.1 lb) on the front passenger seat.

NOTICE:

Place the weight on the seat cushion and do not allow it to come into contact with the seatback.



h.

Check the status of the seat belt warning light (in the combination meter assembly) under the conditions below.

i.

Check that the seat belt warning light (in the combination meter assembly) blinks when the passenger seat belt is unfastened, the shift position is not in P and the parking brake is released.


ii.

Check that the seat belt warning light (in the combination meter assembly) blinks when the vehicle is driven at approximately 5 km/h (3 mph) or higher with the passenger seat belt unfastened.

Check that after 106 seconds, the seat belt warning light (in the combination meter assembly) changes from blinking to on.


iii.

Check that the seat belt warning light (in the combination meter assembly) changes to on when the seat belt warning light (in the combination meter assembly) is blinking, the vehicle speed is 1.75 km/h (1 mph) or less and the shift position is changed to P.


iv.

Check that the seat belt warning light (in the combination meter assembly) changes to on when the seat belt warning light (in the combination meter assembly) is blinking, the vehicle speed is 1.75 km/h (1 mph) or less and the parking brake is not released.


v.

Check that the seat belt warning light (in the combination meter assembly) turns off when the passenger seat belt is fastened with the seat belt warning light (in the combination meter assembly) on or blinking.



Hide 3.INSPECT REAR SEAT BELT WARNING LIGHT

HINT:

Perform the following inspection for each rear seat.


a.

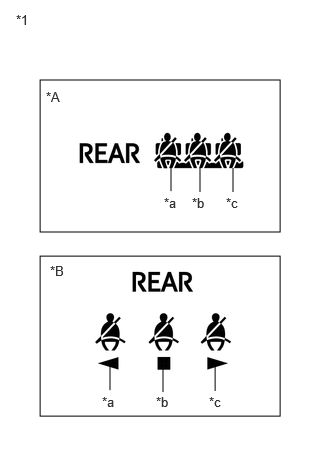

B633260C01
0.417,2.667 2.917,4.333 2.5,1.667 0.417,0.833 2.917,2.417 2.5,1.583 1.781,1.99 1.781,1.74 false 2.083,2 2.083,1.75 false 2.427,2 2.427,1.75 false 1.146,4.063 1.146,3.813 false 1.698,4.083 1.698,3.833 false 2.24,4.073 2.24,3.823 false 0.167,0.125 0.479,0.323 0.313,0.198 10 false *1 0.479,0.927 0.792,1.125 0.313,0.198 10 false *A 0.521,2.74 0.833,2.938 0.313,0.198 10 false *B 1.708,2.031 2.021,2.229 0.313,0.198 10 false *a 2,2.031 2.313,2.229 0.313,0.198 10 false *b 2.354,2.031 2.667,2.229 0.313,0.198 10 false *c 1.063,4.104 1.375,4.302 0.313,0.198 10 false *a 1.625,4.104 1.938,4.302 0.313,0.198 10 false *b 2.177,4.104 2.49,4.302 0.313,0.198 10 false *c
*1 Rear Seat Belt Warning Light (Combination Meter Assembly)
*A for Optitron Meter Type
*B for TFT Meter Type
*a LH
*b Center
*c RH


Turn the ignition switch off.


b.

Unfasten the rear seat belt.


c.

Turn the ignition switch to ON.


d.

Check that the rear seat belt warning light (in the combination meter assembly) turns on.


e.

Check that the rear seat belt warning light turns on for approximately 66 seconds and then turns off.


f.

Fasten the rear seat belt.


g.

With the rear seat belt warning light off, check that the rear seat belt warning light in the combination meter assembly turns on again when the rear seat belt is unfastened.


Hide 4.INSPECT DRIVER SEAT BELT WARNING BUZZER

a.

Lift the vehicle.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>VEHICLE LIFT AND SUPPORT LOCATIONS


b.

Turn the ignition switch to ON (READY). (for HV Model)


c.

Start the engine. (for Gasoline Model)


d.

Check that the seat belt warning buzzer (in the combination meter assembly) sounds intermittently at 1.2-second intervals for 6 seconds when the vehicle is driven at approximately 5 km/h (3 mph) or higher with the seat belt unfastened.


e.

After the buzzer has sounded intermittently at 1.2-second intervals for 6 seconds, check that the interval changes and the buzzer sounds intermittently at 0.4-second intervals for 100 seconds.


f.

When 106 seconds have passed after the buzzer started sounding intermittently, check that the seat belt warning buzzer (in the combination meter assembly) stops.


g.

After the seat belt warning buzzer (in the combination meter assembly) stops, check that the buzzer once again sounds intermittently when the seat belt is fastened and then unfastened again, and then the vehicle is driven at approximately 5 km/h (3 mph) or higher.


h.

Check that the seat belt warning buzzer (in the combination meter assembly) stops when the shift position is changed to R while the seat belt warning buzzer (in the combination meter assembly) is sounding.

Check that the buzzer once again sounds intermittently when the shift position is changed to D again and the vehicle is driven at approximately 5 km/h (3 mph) or higher with the seat belt unfastened.


Hide 5.INSPECT FRONT PASSENGER SEAT BELT WARNING BUZZER

a.

Lift the vehicle.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>VEHICLE LIFT AND SUPPORT LOCATIONS


b.

Fasten the driver seat belt.


c.

Turn the ignition switch to ON (READY). (for HV Model)


d.

Start the engine. (for Gasoline Model)


e.

Place a weight of 20 kg (44.1 lb) on the front passenger seat.

NOTICE:

Place the weight on the seat cushion and do not allow it to come into contact with the seatback.



f.

Check that the seat belt warning buzzer (in the combination meter assembly) sounds intermittently at 1.2-second intervals for 6 seconds when the vehicle is driven at approximately 5 km/h (3 mph) or higher with the seat belt unfastened.


g.

After the buzzer has sounded intermittently at 1.2-second intervals for 6 seconds, check that the interval changes and the buzzer sounds intermittently at 0.4-second intervals for 100 seconds.


h.

When 106 seconds have passed after the buzzer started sounding intermittently, check that the seat belt warning buzzer (in the combination meter assembly) stops.


i.

After the seat belt warning buzzer (in the combination meter assembly) stops, check that the buzzer once again sounds intermittently when the seat belt is fastened and then unfastened again, and then the vehicle is driven at approximately 5 km/h (3 mph) or higher.


j.

Check that the seat belt warning buzzer (in the combination meter assembly) stops when the shift position is changed to R while the seat belt warning buzzer (in the combination meter assembly) is sounding.

Check that the buzzer once again sounds intermittently when the shift position is changed to D again and the vehicle is driven at approximately 5 km/h (3 mph) or higher with the seat belt unfastened.


Hide 6.INSPECT REAR SEAT BELT WARNING BUZZER

a.

Lift up the vehicle.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>VEHICLE LIFT AND SUPPORT LOCATIONS


b.

Fasten the driver seat belt.


c.

Turn the ignition switch to ON (READY). (for HV Model)


d.

Start the engine. (for Gasoline Model)


e.

Ensure that the rear seat belt is fastened, and then unfasten it.


f.

Check that the seat belt warning buzzer (in the combination meter assembly) sounds once when the rear seat belt is fastened and then unfastened, and then the vehicle is driven at approximately 5 km/h (3 mph) or higher.


g.

After the buzzer sounds once, check that the seat belt warning buzzer (in the combination meter assembly) sounds intermittently at 1.2-second intervals for 6 seconds.


h.

After the buzzer has sounded intermittently at 1.2-second intervals for 6 seconds, check that the interval changes and the buzzer sounds intermittently at 0.4-second intervals for 60 seconds.


i.

When 66 seconds have passed after the buzzer started sounding intermittently, check that the seat belt warning buzzer (in the combination meter assembly) stops.


j.

After the seat belt warning buzzer (in the combination meter assembly) stops, check that the buzzer sounds once and then once again sounds intermittently when the vehicle is driven at approximately 5 km/h (3 mph) or higher with the rear seat belt unfastened.


k.

Check that the seat belt warning buzzer (in the combination meter assembly) stops when the shift position is changed to R while the seat belt warning buzzer (in the combination meter assembly) is sounding.

Check that the buzzer once again sounds intermittently when the shift position is changed to D again and the vehicle is driven at approximately 5 km/h (3 mph) or higher with the rear seat belt unfastened.
