MIRROR (EXT)  OUTER REAR VIEW MIRROR  INSTALLATION

87940 1.INSTALL OUTER REAR VIEW MIRROR ASSEMBLY

a.

Engage the 2 guides and claw.

b.

1.26,0.833 1.417,1.031 0.156,0.198 10 true 1 2.219,0.708 2.375,0.906 0.156,0.198 10 true 2 1.146,1.188 1.302,1.385 0.156,0.198 10 true 3

Install the outer rear view mirror assembly with the 3 nuts.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

HINT:

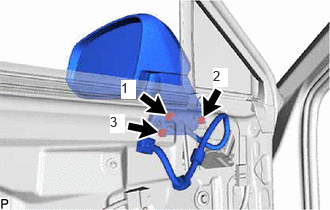

Tighten the nuts in the order shown in the illustration.

87964 2.INSTALL OUTER MIRROR INSTALL HOLE COVER

a.

Engage the 3 guides and 2 claws.

b.

Install the outer mirror install hole cover with the screw.

c.

0,0 0,0 false

Sponge Tape

Engage the clamp as shown in the illustration.

d.

Connect the connector.

67602 3.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

74222A 4.INSTALL FRONT DOOR ARMREST COVER

69278B 5.INSTALL FRONT DOOR INSIDE HANDLE BEZEL

6.PERFORM CALIBRATION (w/ Panoramic View Monitor System)
