PARK ASSIST / MONITORING TELEVISION CAMERA(for Front) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front television camera assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Front television camera assembly* | Front television camera view adjustment | Panoramic View Monitor System | ( 202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
Replacement or removal and installation of 2 or more parts:
·
Front television camera assembly, Radiator grille sub-assembly or Front bumper assembly ·
Rear television camera assembly ·
Side television camera assembly LH or Outer rear view mirror assembly LH ·
Side television camera assembly RH or Outer rear view mirror assembly RH |
Television camera view adjustment | Panoramic View Monitor System | (202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
PROCEDURE
17750A
1.REMOVE INLET AIR CLEANER ASSEMBLY (for Gasoline Model)
53510
2.REMOVE HOOD LOCK ASSEMBLY
16681A
3.REMOVE UPPER RADIATOR AIR GUIDE PLATE
86790B
4.REMOVE FRONT TELEVISION CAMERA ASSEMBLY (for SFTM Made)

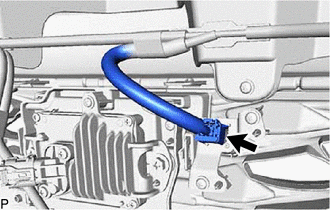

Disconnect the connector.

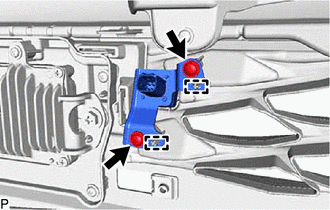

Remove the 2 screws.
Disengage the 2 guides to remove the front television camera assembly.
86790B
5.REMOVE FRONT TELEVISION CAMERA ASSEMBLY (for GTMC Made)

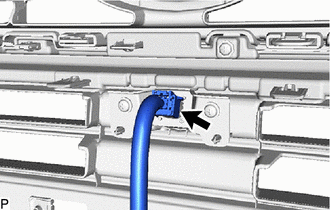

Disconnect the connector.

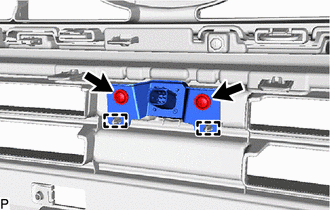

Remove the 2 screws.
Disengage the 2 guides to remove the front television camera assembly.
