RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500098 NAME PLATE(for SFTM Made) A

EXTERIOR PANELS / TRIM NAME PLATE(for SFTM Made) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: When installing the name plates, heat the vehicle body using a heat light.

Heating Temperature
Item	Temperature
Vehicle Body	20 to 30 °C (68 to 86 °F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts, touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the vehicle body excessively.

PROCEDURE

Hide Display 75362 1.INSTALL NO. 2 FRONT FENDER NAME PLATE (for HV Model)

Clean the vehicle body surface.

Using a heat light, heat the vehicle body surface.

ii.

Remove any remaining double-sided tape from the vehicle body.

iii.

Wipe off any tape adhesive residue with cleaner.

Install a new No. 2 front fender name plate.

Using a heat light, heat the vehicle body surface.

ii.

Remove the release paper from the No. 2 front fender name plate.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

iii.

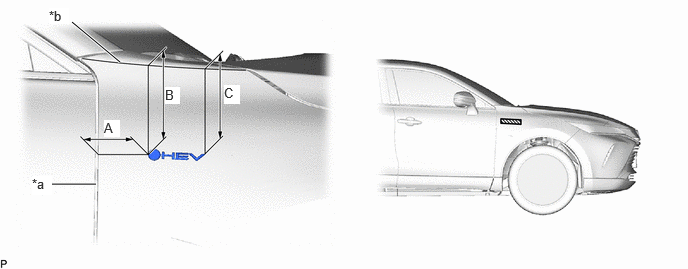

Install the No. 2 front fender name plate as shown in the illustration.

5.854,0.656 6.417,0.26 true 6.167,1.833 6.667,1.833 true 6.708,1.74 6.917,1.917 0.208,0.177 10 true *a 6.458,0.104 6.667,0.271 0.208,0.167 10 true *b 4.708,0.917 4.917,1.083 0.208,0.167 10 true A 5.229,0.917 5.438,1.083 0.208,0.167 10 true B 5.906,1.208 6.115,1.375 0.208,0.167 10 true C

Profile of Front Fender Panel

R End

Standard Measurement:

Area	Measurement	Area	Measurement
A	181.0 mm (7.13 in.)	B	183.3 mm (7.22 in.)
C	91.3 mm (3.59 in.)	-	-

HINT:: Press the No. 2 front fender name plate firmly to install it.

Hide Display 75361A 2.INSTALL NO. 1 FRONT FENDER NAME PLATE (for HV Model)

Clean the vehicle body surface.

Using a heat light, heat the vehicle body surface.

ii.

Remove any remaining double-sided tape from the vehicle body.

iii.

Wipe off any tape adhesive residue with cleaner.

Install a new No. 1 front fender name plate.

Using a heat light, heat the vehicle body surface.

ii.

Remove the release paper from the No. 1 front fender name plate.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

iii.

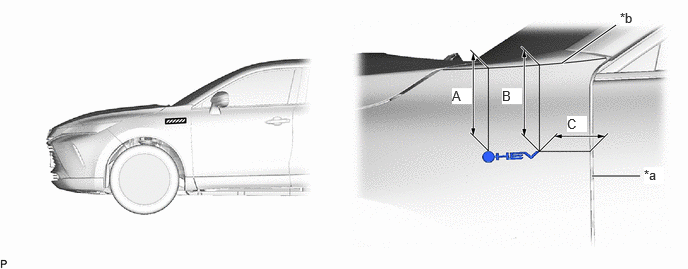

Install the No. 1 front fender name plate as shown in the illustration.

0.5,1.917 1,1.917 true 1.25,0.646 0.75,0.229 true 0.51,0.083 0.719,0.25 0.208,0.167 10 true *b 0.333,1.833 0.542,2.031 0.208,0.198 10 true *a 1.083,1.25 1.25,1.427 0.167,0.177 10 true A 1.719,0.906 1.875,1.083 0.156,0.177 10 true B 2.333,0.885 2.5,1.083 0.167,0.198 10 true C

Profile of Front Fender Panel

R End

Standard Measurement:

Area	Measurement	Area	Measurement
A	90.5 mm (3.56 in.)	B	188.2 mm (7.41 in.)
C	183.8 mm (7.24 in.)	-	-

HINT:: Press the No. 1 front fender name plate firmly to install it.

Hide Display 75441C 3.INSTALL BACK DOOR NAME PLATE

Clean the back door panel surface.

Using a heat light, heat the back door panel surface.

ii.

Remove any remaining double-sided tape from the back door panel.

iii.

Wipe off any tape adhesive residue with cleaner.

Install a new back door name plate.

Using a heat light, heat the back door panel surface.

ii.

Remove the release paper from the back door name plate.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

iii.

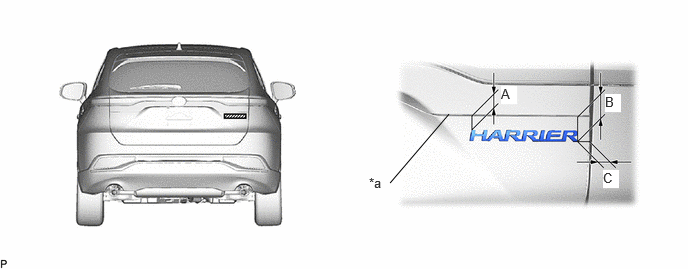

Install the back door name plate as shown in the illustration.

6.208,1.177 6.813,0.594 true 6.844,0.479 7.052,0.667 0.208,0.188 10 false *a 4.396,0.802 4.563,0.99 0.167,0.188 10 true A 5.25,0.896 5.417,1.083 0.167,0.188 10 true B 6.073,0.875 6.24,1.063 0.167,0.188 10 true C

R End of Back Door Panel

Standard Measurement:

Area	Measurement	Area	Measurement
A	35.0 mm (1.38 in.)	B	32.2 mm (1.27 in.)
C	21.2 mm (0.835 in.)	-	-

HINT:: Press the back door name plate firmly to install it.

Hide Display 75444A 4.INSTALL NO. 4 BACK DOOR NAME PLATE (for AWD)

Clean the back door panel surface.

Using a heat light, heat the back door panel surface.

ii.

Remove any remaining double-sided tape from the back door panel.

iii.

Wipe off any tape adhesive residue with cleaner.

Install a new No. 4 back door name plate.

Using a heat light, heat the back door panel surface.

ii.

Remove the release paper from the No. 4 back door name plate.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

iii.

Install the No. 4 back door name plate as shown in the illustration.

6.177,0.979 6.823,0.406 true 6.813,0.313 7.021,0.5 0.208,0.188 10 false *a 4.521,0.833 4.688,1.021 0.167,0.188 10 true A 5.271,0.875 5.438,1.063 0.167,0.188 10 true B 5.875,0.865 6.042,1.052 0.167,0.188 10 true C

R End of Back Door Panel

Standard Measurement:

Area	Measurement	Area	Measurement
A	50.7 mm (2.00 in.)	B	59.3 mm (2.33 in.)
C	62.2 mm (2.45 in.)	-	-

HINT:: Press the No. 4 back door name plate firmly to install it.

Hide Display 75442A 5.INSTALL NO. 2 BACK DOOR NAME PLATE

Clean the back door panel surface.

Using a heat light, heat the back door panel surface.

ii.

Remove any remaining double-sided tape from the back door panel.

iii.

Wipe off any tape adhesive residue with cleaner.

Install a new No. 2 back door name plate.

Using a heat light, heat the back door panel surface.

ii.

Remove the release paper from the No. 2 back door name plate.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

iii.

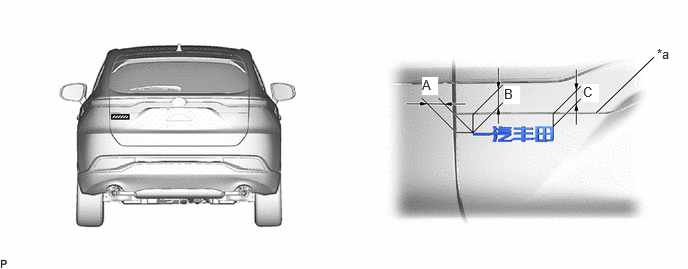

Install the No. 2 back door name plate as shown in the illustration.

4.063,1.906 4.677,1.188 false 3.844,1.823 4.052,2.01 0.208,0.188 10 false *a 5.219,0.896 5.385,1.083 0.167,0.188 10 true A 6.302,0.979 6.469,1.167 0.167,0.188 10 true B 6.281,1.771 6.448,1.958 0.167,0.188 10 true C

R End of Back Door Panel

Standard Measurement:

Area	Measurement	Area	Measurement
A	23.7 mm (0.933 in.)	B	44.5 mm (1.75 in.)
C	25.1 mm (0.988 in.)	-	-

HINT:: Press the No. 2 back door name plate firmly to install it.

Hide Display 75445A 6.INSTALL NO. 5 BACK DOOR NAME PLATE (for HV Model)

Clean the back door panel surface.

Using a heat light, heat the back door panel surface.

ii.

Remove any remaining double-sided tape from the back door panel.

iii.

Wipe off any tape adhesive residue with cleaner.

Install a new No. 5 back door name plate.

Using a heat light, heat the back door panel surface.

ii.

Remove the release paper from the No. 5 back door name plate.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

iii.

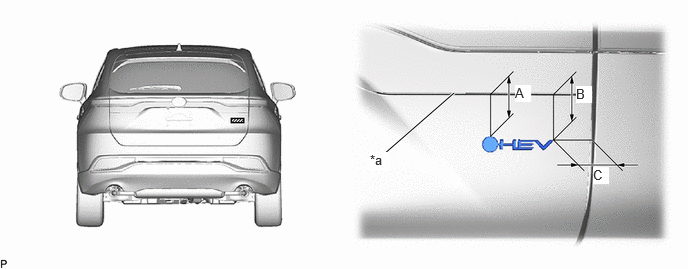

Install the No. 5 back door name plate as shown in the illustration.

4.729,0.969 4,1.604 true 3.854,1.583 4.063,1.781 0.208,0.198 10 true *a 5.365,0.885 5.531,1.063 0.167,0.177 10 true A 6,0.896 6.167,1.073 0.167,0.177 10 true B 6.177,1.74 6.344,1.917 0.167,0.177 10 true C

R End of Back Door Panel

Standard Measurement:

Area	Measurement	Area	Measurement
A	53.0 mm (2.09 in.)	B	57.5 mm (2.26 in.)
C	55.8 mm (2.2 in.)	-	-

HINT:: Press the No. 5 back door name plate firmly to install it.
