Audio / Visual / Telematics
_111824
TELEMATICS
_0500300
TELEPHONE MICROPHONE ASSEMBLY
A
TELEMATICS TELEPHONE MICROPHONE ASSEMBLY INSTALLATION
PROCEDURE
86730D
1.INSTALL NO. 2 TELEPHONE MICROPHONE ASSEMBLY (except SFTM Made without Navigation System)
a.
Connect the connector to install the No. 2 telephone microphone assembly.
86730E
2.INSTALL MICROPHONE ASSEMBLY (except SFTM Made without Navigation System)
a.
0,0 0,0
false
|

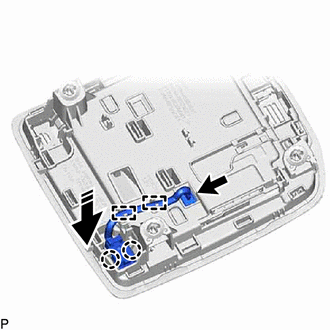

Install in this Direction |
Engage the 2 claws as shown in the illustration.
b.
Engage the 2 clamps.
c.
Connect the connector to install the microphone assembly.
86730A
3.INSTALL TELEPHONE MICROPHONE ASSEMBLY (for SFTM Made without Navigation System)
a.
0,0 0,0
false
|
|
Install in this Direction |
Engage the 2 claws as shown in the illustration.
b.
Engage the 2 clamps.
c.
Connect the connector to install the telephone microphone assembly.
4.INSTALL MAP LIGHT ASSEMBLY
