NAVIGATION / MULTI INFO DISPLAY  TELEPHONE MICROPHONE ASSEMBLY  REMOVAL

1.REMOVE MAP LIGHT ASSEMBLY

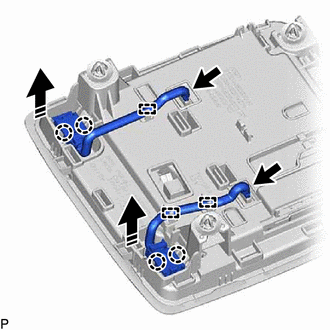

86730E 2.REMOVE MICROPHONE ASSEMBLY (w/ Navigation System)

a.

0,0 0,0 false

Remove in this Direction

Disconnect the 2 connectors.

b.

Disengage the 3 clamps.

c.

Disengage the 4 claws and remove the 2 microphone assemblies as shown in the illustration.

86730D 3.REMOVE NO. 2 TELEPHONE MICROPHONE ASSEMBLY (w/ Navigation System)

HINT:

Use the same procedure for the LH side and RH side.

a.

Disconnect the connector to remove the No. 2 telephone microphone assembly.

86730E 4.REMOVE MICROPHONE ASSEMBLY (for GTMC Made without Navigation System)

a.

0,0 0,0 false

Remove in this Direction

Disconnect the connector.

b.

Disengage the 2 clamps.

c.

Disengage the 2 claws and remove the microphone assembly as shown in the illustration.

86730D 5.REMOVE NO. 2 TELEPHONE MICROPHONE ASSEMBLY (for GTMC Made without Navigation System)

a.

Disconnect the connector to remove the No. 2 telephone microphone assembly.

86730A 6.REMOVE TELEPHONE MICROPHONE ASSEMBLY (for SFTM Made without Navigation System)

a.

0,0 0,0 false

Remove in this Direction

Disconnect the connector.

b.

Disengage the 2 clamps.

c.

Disengage the 2 claws and remove the telephone microphone assembly as shown in the illustration.
