PARK ASSIST / MONITORING  PANORAMIC VIEW MONITOR SYSTEM  PARTS LOCATION

ILLUSTRATION

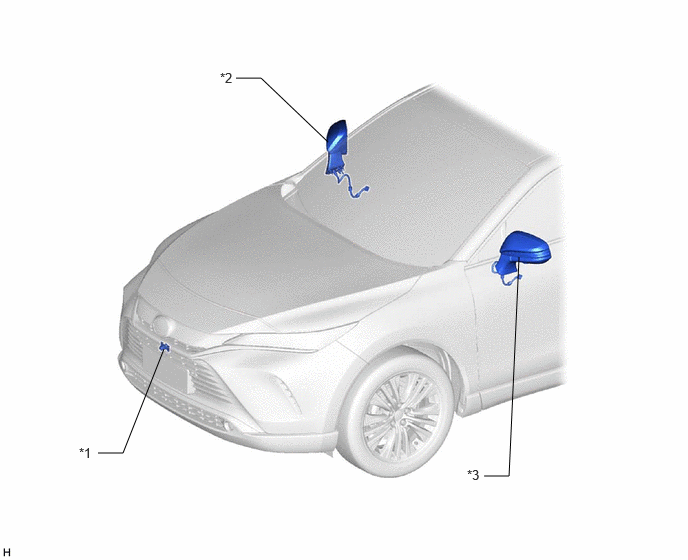

1.021,4.719 1.281,4.719 1.281,4.719 1.708,3.635 false 2.458,0.813 2.719,0.813 2.719,0.813 3.417,1.479 false 5.042,4.958 5.302,4.958 5.302,4.958 5.406,2.677 false 0.823,4.635 1.135,4.833 0.313,0.198 10 false *1 2.292,0.729 2.604,0.927 0.313,0.198 10 false *2 4.865,4.865 5.177,5.063 0.313,0.198 10 false *3

*1	FRONT TELEVISION CAMERA ASSEMBLY	*2	OUTER REAR VIEW MIRROR ASSEMBLY RH - SIDE TELEVISION CAMERA ASSEMBLY RH
*3	OUTER REAR VIEW MIRROR ASSEMBLY LH - SIDE TELEVISION CAMERA ASSEMBLY LH	-	-

ILLUSTRATION

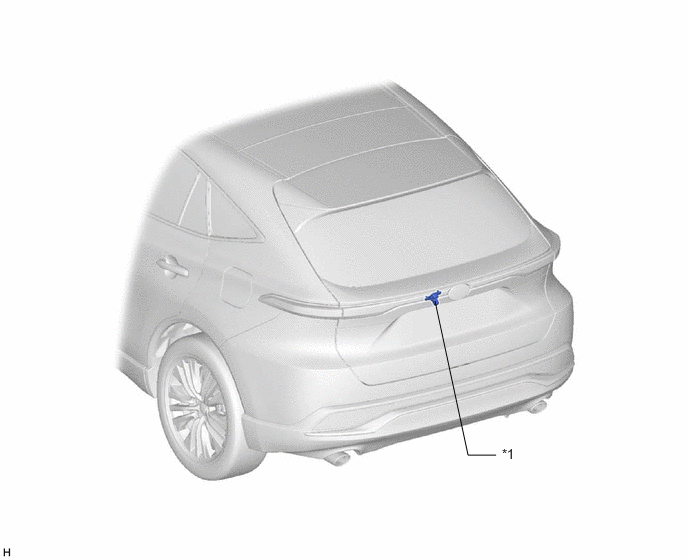

5.167,4.74 4.875,4.74 4.875,4.74 4.531,3.135 false 5.229,4.646 5.542,4.844 0.313,0.198 10 false *1

*1

REAR TELEVISION CAMERA ASSEMBLY

-

-

ILLUSTRATION

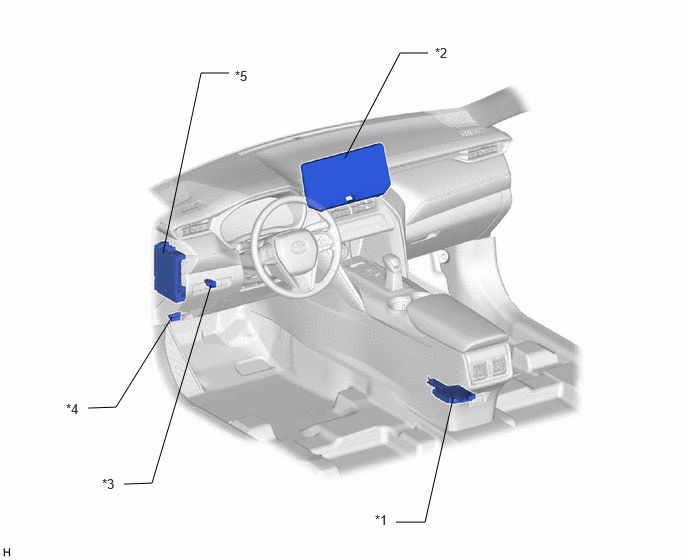

4.125,5.438 4.427,5.438 4.427,5.438 4.719,4.146 false 4.458,0.552 4.167,0.552 4.167,0.552 3.594,1.646 false 1.292,5.042 1.583,5.031 1.583,5.031 2.198,2.969 false 0.917,4.25 1.208,4.24 1.208,4.24 1.792,3.302 false 2.385,0.76 2.094,0.76 2.094,0.76 1.698,2.635 false 3.906,5.333 4.219,5.531 0.313,0.198 10 false *1 4.531,0.469 4.844,0.667 0.313,0.198 10 false *2 1.063,4.958 1.375,5.156 0.313,0.198 10 false *3 0.688,4.177 1,4.375 0.313,0.198 10 false *4 2.448,0.708 2.76,0.906 0.313,0.198 10 false *5

*1	PARKING ASSIST ECU	*2	RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Audio and Visual System) NAVIGATION RECEIVER ASSEMBLY (w/ Navigation System)
*3	PANORAMIC VIEW MONITOR SWITCH	*4	DLC3
*5	POWER DISTRIBUTION BOX ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IGR NO. 1 FUSE	-	-
