POWER OUTLETS (INT)  WIRELESS CHARGING SYSTEM(for GTMC Made)  Status Signal Circuit


DESCRIPTION

This circuit sends a charging suspension signal from the certification ECU (smart key ECU assembly) to the mobile wireless charger cradle assembly. Based on this signal, the mobile wireless charger cradle assembly suspends or resumes wireless charging.

HINT:

The wireless charging system uses the same radio wave frequency that is used to perform verification of the electrical key transmitter sub-assembly. Therefore, when the electrical key transmitter sub-assembly verification is being performed, the certification ECU (smart key ECU assembly) sends a charging suspension signal to the wireless charging system to suspend charging.


WIRING DIAGRAM

E479362E40
0.323,1.448 6.74,1.646 6.417,0.198 10 false Certification ECU (Smart Key ECU Assembly) 0.323,1.26 0.781,1.458 0.458,0.198 10 false K6 4.104,1.458 6.771,1.646 2.667,0.188 10 false Mobile Wireless Charger Cradle Assembly 4.094,1.26 4.521,1.469 0.427,0.208 10 false E159 4.563,0.75 5.021,0.948 0.458,0.198 10 false DIS 2.156,0.76 2.771,0.958 0.615,0.198 10 false WCSW 2.708,0.635 3.021,0.833 0.313,0.198 10 false 20 4.323,0.635 4.479,0.833 0.156,0.198 10 false 7

CAUTION / NOTICE / HINT

NOTICE:

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.


PROCEDURE

1.CHECK MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (DIS TERMINAL)
a.
E470739C01

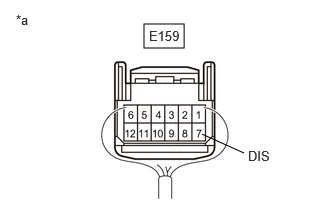

1.5,0.25 1.917,0.5 0.417,0.25 2.104,1.396 2.542,1.594 false 0.167,0.125 0.479,0.281 0.313,0.156 10 false *a 1.552,0.292 2,0.542 0.448,0.25 10 false E159 2.583,1.542 3.042,1.74 0.458,0.198 10 false DIS
*a Component with harness connected
(Mobile Wireless Charger Cradle Assembly)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

*1: When the ignition switch is turned from off to ACC, the mobile wireless charger cradle assembly monitors the charging suspension signal.

*2: For details about conditions when the certification ECU (smart key ECU assembly) sends the charging suspension signal, refer to System Description.

Click here(Click here)

Click Location & Routing(E159)Location & Routing

Click Connector(E159)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Mobile Wireless Charger Cradle Assembly

E159-7 (DIS) - Body ground For 5 seconds after turning ignition switch from off to ACC*1 4.5 to 6.0 V
Device being charged Below 1 V
Charging suspended due to smart key system status*2 4.5 to 6.0 V



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGING SYSTEM (for GTMC Made)>PROBLEM SYMPTOMS TABLE


NG

2.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - MOBILE WIRELESS CHARGER CRADLE ASSEMBLY)
2.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - MOBILE WIRELESS CHARGER CRADLE ASSEMBLY)
a.

Disconnect the K6 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the E159 mobile wireless charger cradle assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(K6,E159)Location & Routing

Click Connector(K6)Instrument Panel>Floor Wire>Smart Key ECU Assembly

Click Connector(E159)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Mobile Wireless Charger Cradle Assembly

K6-20 (WCSW) - E159-7 (DIS) Always Below 1 Ω
K6-20 (WCSW) or E159-7 (DIS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
