M20C-FKS, M20D-FKS STARTING  STARTER(for 1.2 kW Type)  DISASSEMBLY

0.354,0.958 0.688,0.958 false 0.344,0.729 0.583,0.729 false 0.198,0.875 0.51,1.031 0.313,0.156 10 false *1 0.219,0.615 0.531,0.771 0.313,0.156 10 false *a

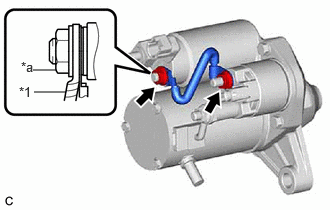

*1	Wire Harness
*a	Nut

Remove the 2 nuts and wire harness.

Remove the nut and disconnect the lead wire from terminal M.

Remove the 2 bolts and starter inrush current reduction relay from the starter drive housing assembly.

While holding the magnet starter switch assembly to the starter drive housing assembly, remove the 2 bolts.

0.677,0.542 0.958,0.542 false 0.604,1.073 0.802,1.073 0.802,1.073 0.885,0.875 false 0.99,0.458 1.302,0.656 0.313,0.198 10 false *1 0.427,0.958 0.74,1.156 0.313,0.198 10 false *a

*1	Pinion Drive Lever
*a	Hook

While lifting the rear of the magnet starter switch assembly, remove the hook from the pinion drive lever, and then remove the magnet starter switch assembly.

Using a 7 mm deep socket wrench, remove the 3 through bolts and starter yoke assembly.

Remove the starter commutator end frame assembly from the starter yoke assembly.

1,0.625 1.281,0.625 1.281,0.625 1.542,1.135 false 1.885,1.875 2.448,1.875 false 0.74,1.583 1.302,1.583 false 0.813,0.531 1.125,0.729 0.313,0.198 10 false *3 2.479,1.76 2.792,1.958 0.313,0.198 10 false *2 0.552,1.479 0.865,1.677 0.313,0.198 10 false *1

*1	Starter Yoke Assembly
*2	Starter Brush Holder Assembly
*3	Starter Armature Assembly

Remove the starter yoke assembly while holding down the starter armature assembly and starter brush holder assembly with the handle of a hammer.

HINT:

The starter armature assembly will be attracted by the magnetic field of the starter yoke assembly. Hold the starter armature assembly with the handle of the hammer.

0.219,0.677 0.406,0.677 0.406,0.677 0.646,0.958 false 1.844,1.646 2.104,2.063 2.104,2.063 2.323,2.063 false 2.333,1.958 2.646,2.115 0.313,0.156 10 false *1 0.063,0.563 0.375,0.719 0.313,0.156 10 false *2

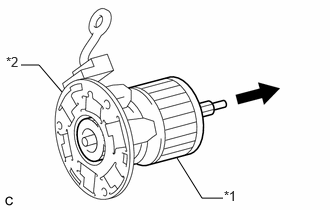

*1	Starter Armature Assembly
*2	Starter Brush Holder Assembly

Remove the starter armature assembly from the starter brush holder assembly.

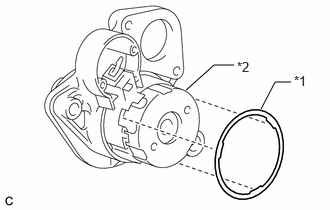

Remove the rubber seal from the starter drive housing assembly.

1.938,0.938 2.229,0.677 2.229,0.677 2.438,0.677 false 2.719,1.135 2.865,0.854 2.865,0.854 3.031,0.854 false 3.063,0.76 3.333,0.979 0.271,0.219 10 false *1 2.469,0.615 2.781,0.771 0.313,0.156 10 false *2

*1	Washer
*2	Starter Center Bearing Clutch Sub-assembly

Remove the washer from the starter center bearing clutch sub-assembly.

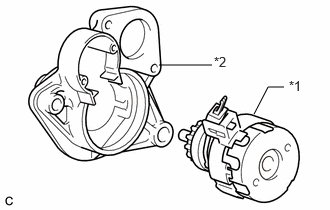

1.656,0.677 2.208,0.677 false 2.646,1.188 2.792,0.906 2.792,0.906 2.958,0.906 false 3.01,0.813 3.281,1.031 0.271,0.219 10 false *1 2.229,0.563 2.542,0.719 0.313,0.156 10 false *2

*1	Starter Center Bearing Clutch Sub-assembly
*2	Starter Drive Housing Assembly

Remove the starter center bearing clutch sub-assembly that is press-fitted from the starter drive housing assembly.
