LIGHTING (EXT)  FOG LIGHT ASSEMBLY  INSPECTION

2.083,1.917 1.917,1.167 true 1.333,1.917 1.5,1.167 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 1.25,1.917 1.406,2.115 0.156,0.198 10 false B 2.094,1.917 2.25,2.115 0.156,0.198 10 false E

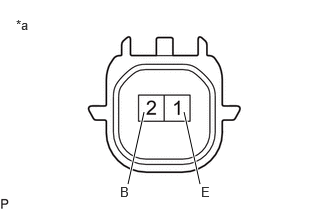

*a	Component without harness connected (Fog Light Assembly LH)

Apply auxiliary battery voltage to the fog light assembly LH and check that the light illuminates.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 2 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Fog light illuminates

If the result is not as specified, replace the fog light assembly LH.

2.083,1.917 1.917,1.167 true 1.333,1.917 1.5,1.167 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 1.25,1.917 1.406,2.115 0.156,0.198 10 false B 2.094,1.917 2.25,2.115 0.156,0.198 10 false E

*a	Component without harness connected (Fog Light Assembly RH)

Apply auxiliary battery voltage to the fog light assembly RH and check that the light illuminates.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 2 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Fog light illuminates

If the result is not as specified, replace the fog light assembly RH.

2.083,1.917 1.917,1.167 true 1.333,1.917 1.5,1.167 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 1.25,1.917 1.406,2.115 0.156,0.198 10 false B 2.094,1.917 2.25,2.115 0.156,0.198 10 false E

*a	Component without harness connected (Fog Light LED)

Apply auxiliary battery voltage to the fog light LED and check that the light illuminates.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 2 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Fog light LED illuminates

If the result is not as specified, replace the fog light LED.
