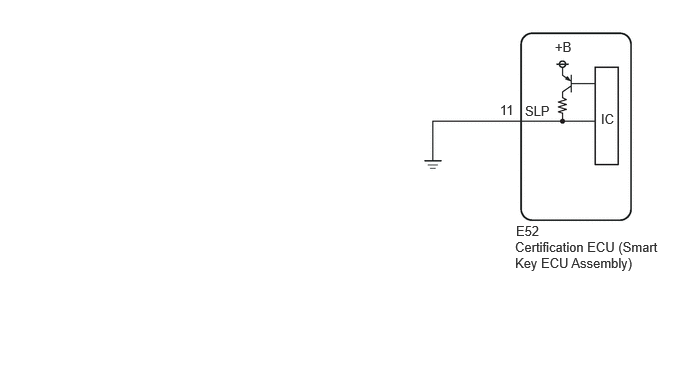

This DTC is stored when there is no continuity between terminal SLP of the certification ECU (smart key ECU assembly) and ground.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Note |
|---|---|---|---|---|
| B228562 | Steering Lock Position Signal Compare Failure | This DTC is stored when there is no continuity between terminal SLP of the certification ECU (smart key ECU assembly) and ground. | ·
Certification ECU (smart key ECU assembly) ·
Wire harness or connector |
DTC Output Confirmation Operation:
Disconnect the cable from the negative (-) auxiliary battery terminal, wait 30 seconds and then reconnect the cable to the negative (-) auxiliary battery terminal. Wait at least 40 seconds with the ignition switch off, then turn the ignition switch to ON and wait at least 40 seconds. |
*: Only detected while a malfunction is present and the ignition switch is ON.
| Vehicle Condition when Malfunction Detected | Fail-safe Function when Malfunction Detected |
|---|---|
| The engine cannot be started. | The ECU does not send an engine start request. |
| DTC No. | Data List and Active Test |
|---|---|
| B228562 | - |
When using the GTS with the ignition switch off, perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins, and then select the vehicle model manually.
Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start (CAN). While using the GTS, periodically perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.
After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".
Check for DTCs.
| Result | Proceed to |
|---|---|
| B278588 is not output | A |
| B278588 is output | B |
A
B
Pre-procedure1
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
|
Click Location & Routing(E52)Location & Routingewd_type=routing;type=c;code=E52 Click Connector(E52)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Smart Key ECU Assemblyewd_type=component;type=c;code=E52;pinno=11 |
||
| E52-11 (SLP) - E54-4 (SLP1) | Always | Below 1 Ω |
| Proceed to |
|---|
| OK |
| NG |
Post-procedure1
None
OK
NG
