RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0524674 NAME PLATE(for GTMC Made) A

EXTERIOR PANELS / TRIM  NAME PLATE(for GTMC Made)  REMOVAL


CAUTION / NOTICE / HINT

HINT:

When removing the name plates, heat the name plates and vehicle body using a heat light.


Heating Temperature
Item Temperature
Name Plate and Vehicle Body 40 to 60°C (104 to 140°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body or name plates excessively.


PROCEDURE

Hide 75441C 1.REMOVE BACK DOOR NAME PLATE

a.

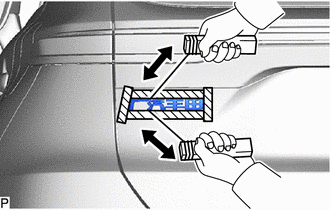

B645739
2.615,1.51 2.917,1.531 true 1.792,0.792 2.594,0.875 true 2.958,1.427 3.177,1.604 0.219,0.177 10 true *a 2.625,0.823 2.844,1 0.219,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the back door name plate as shown in the illustration.


b.

Insert a piano wire between the back door panel and back door name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


d.

Pull the piano wire and cut the double-sided tape that holds the back door name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.



Hide 75444A 2.REMOVE NO. 4 BACK DOOR NAME PLATE (for AWD)

a.

for HV Model:

i.

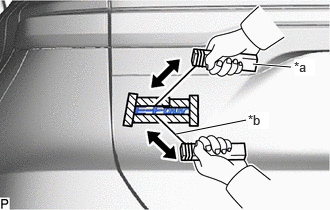

B629023C01
2.635,0.667 3.031,0.698 true 1.833,1.396 2.563,1.25 true 3.063,0.615 3.281,0.792 0.219,0.177 10 true *a 2.583,1.167 2.802,1.344 0.219,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 4 back door name plate as shown in the illustration.


ii.

Insert a piano wire between the back door panel and No. 4 back door name plate.


iii.

Pull the piano wire and cut the double-sided tape that holds the No. 4 back door name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.




b.

for Gasoline Model:

i.

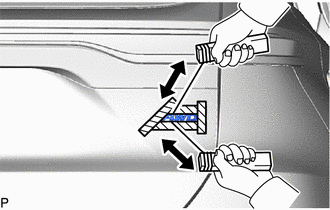

B645741
2.76,1.625 3.094,1.531 true 1.99,0.885 2.688,0.885 true 3.135,1.448 3.354,1.625 0.219,0.177 10 true *a 2.719,0.813 2.938,0.99 0.219,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 4 back door name plate as shown in the illustration.


ii.

Insert a piano wire between the back door panel and No. 4 back door name plate.


iii.

Pull the piano wire and cut the double-sided tape that holds the No. 4 back door name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.




Hide 75442A 3.REMOVE NO. 2 BACK DOOR NAME PLATE

a.

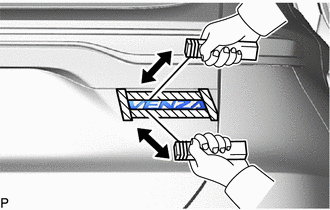

B645740
2.51,1.531 2.938,1.479 true 1.771,0.823 2.802,0.823 true 2.958,1.406 3.177,1.583 0.219,0.177 10 true *a 2.833,0.74 3.052,0.917 0.219,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 2 back door name plate as shown in the illustration.


b.

Insert a piano wire between the back door panel and No. 2 back door name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


d.

Pull the piano wire and cut the double-sided tape that holds the No. 2 back door name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.



Hide 75445A 4.REMOVE NO. 5 BACK DOOR NAME PLATE (for HV Model)

a.

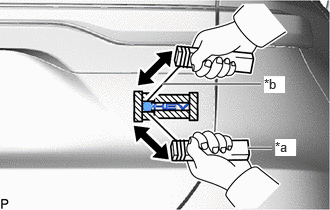

B716916C01
2.583,1.542 2.833,1.542 true 1.688,0.875 2.719,0.875 true 2.865,1.448 3.083,1.625 0.219,0.177 10 true *a 2.75,0.792 2.969,0.969 0.219,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 5 back door name plate as shown in the illustration.


b.

Insert a piano wire between the back door panel and No. 5 back door name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


d.

Pull the piano wire and cut the double-sided tape that holds the No. 5 back door name plate to the back door panel.

NOTICE:

Be careful not to damage the back door panel.



Hide 75362 5.REMOVE NO. 2 FRONT FENDER NAME PLATE (for HV Model)

a.

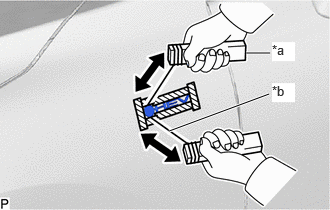

B716917C01
2.563,0.552 2.813,0.552 true 1.76,1.365 2.802,0.979 true 2.833,0.438 3.073,0.635 0.24,0.198 10 true *a 2.833,0.865 3.073,1.063 0.24,0.198 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 2 front fender name plate as shown in the illustration.


b.

Insert a piano wire between the vehicle body and No. 2 front fender name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


d.

Pull the piano wire and cut the double-sided tape that holds the No. 2 front fender name plate to the vehicle body.

NOTICE:

Be careful not to damage the vehicle body.



Hide 75361A 6.REMOVE NO. 1 FRONT FENDER NAME PLATE (for HV Model)

HINT:

Use the same procedure as for the No. 2 front fender name plate.
