RM38N0EC _51 Engine / Hybrid System _111787 M20C-FKS, M20D-FKS LUBRICATION _0503348 ENGINE OIL COOLER A

M20C-FKS, M20D-FKS LUBRICATION ENGINE OIL COOLER REMOVAL

PROCEDURE

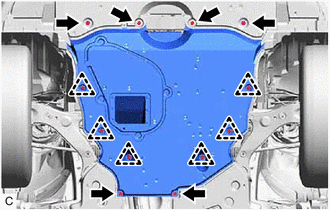

Hide Display 51420 1.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Remove the 4 bolts, 2 screws, 6 clips and No. 2 engine under cover assembly.

Hide Display 2.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS COOLANT>REPLACEMENT202111,999999,_V1,_112220,_0503655,RM100000001ZFD9_02_0001,

Hide Display 3.DRAIN ENGINE OIL

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS OIL AND OIL FILTER>REPLACEMENT202303,999999,_V1,_112220,_0503319,RM100000002BF30_02_0002,

Hide Display 15710 4.REMOVE OIL COOLER ASSEMBLY

1.25,0.958 0.854,0.958 true 2.948,1.448 2.813,1.448 2.813,1.448 2.573,1.125 true 0.708,0.875 0.875,1.063 0.167,0.188 10 true *1 3,1.354 3.198,1.542 0.198,0.188 10 true *2

*1	No. 1 Water By-pass Hose
*2	No. 2 Water By-pass Hose

Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the oil cooler assembly.

Remove the bolt, 2 nuts and oil cooler assembly from the cylinder block sub-assembly.

Remove the 2 oil cooler gaskets from the oil cooler assembly.

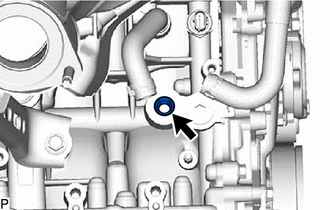

w/ Filter:

Remove the oil control valve filter from the cylinder block sub-assembly.
