K120 / K120F / K121 / K121F CVT OIL PRESSURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during oil pressure sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of oil pressure sensor	· Perform reset memory · CVT oil pressure calibration · Perform road test to allow ECM to learn	· Large shift shock · Deterioration of fuel efficiency	(202303,999999,_52,_111806,_0584611,RM1000000029R1M,) for Initialization (202303,999999,_52,_111806,_0584611,RM1000000029R1L,) for Registration

PROCEDURE

Hide Display 89637K 1.REMOVE OIL PRESSURE SENSOR

Disconnect the oil pressure sensor connector.

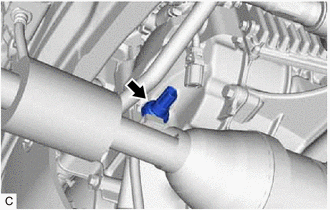

Using a 27 mm deep socket wrench, remove the oil pressure sensor from the rear transaxle case sub-assembly.
