THEFT DETERRENT / KEYLESS ENTRY SMART ENTRY AND START SYSTEM(for Start Function, Gasoline Model) P033562 Crankshaft Position Sensor "A" Signal Compare Failure
DESCRIPTION
These DTCs are stored when the engine speed signal sent by the ECM via direct line and the engine speed signal sent via CAN communication do not match.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Note |
|---|---|---|---|---|
| P033562 | Crankshaft Position Sensor "A" Signal Compare Failure | The engine speed signal sent by the ECM via direct line and the engine speed signal sent via CAN communication do not match. (1-trip detection logic*) | ·
SFI system ·
Certification ECU (smart key ECU assembly) ·
Wire harness or connector |
DTC Output Confirmation Operation:
Allow the engine to idle for 10 seconds or more, and then engine speed of 1000 rpm or more for 20 seconds or more. |
*: Only detected while a malfunction is present and the ignition switch is ON.
| Vehicle Condition when Malfunction Detected | Fail-safe Function when Malfunction Detected |
|---|---|
·
When a malfunction occurs and the vehicle speed signal sent via either direct line or CAN communication indicates no vehicle speed, there is no effect on vehicle behavior. (A malfunction is detected after the ignition switch is turned to ON.) ·
When a malfunction occurs and the vehicle speed signal sent via either direct line or CAN communication indicates that the vehicle is moving, the engine cannot be started. However, the engine can be started after the ignition switch has been turned off. |
·
When a malfunction occurs and the vehicle speed signal sent via either direct line or CAN communication indicates no vehicle speed, there is no effect on vehicle behavior. ·
When the signal sent via either direct line or CAN communication is malfunctioning and indicates that the vehicle is moving: If the following conditions are met, it can be determined that the malfunction is not in the CAN communication system but in the direct line (NE).
-
When the engine switch is pressed, the system controls the engine based on the starter OFF permission flag (perfect injection signal judgment) via CAN communication, causing the engine to stop cranking. -
When the engine switch is pressed and held, the system controls the engine based on the engine speed signal via CAN communication, causing the engine to stop cranking. If the following conditions are met, it can be determined that the malfunction is not in the direct line (NE) but in the CAN communication system.
-
When the engine switch is pressed, the system controls the engine based on the engine speed signal via direct line, causing the engine to stop cranking. -
When the engine switch is pressed and held, the system controls the engine based on the engine speed signal via direct line, causing the engine to stop cranking. If the following conditions are met, it can be determined that there is a malfunction in both the CAN communication system and the direct line (NE).
-
When the engine switch is pressed, the engine stops cranking after 6 seconds. -
When the engine switch is pressed and held, the engine cranks for up to 30 seconds. |
| DTC No. | Data List and Active Test |
|---|---|
| P033562 | Power Source Control
·
Engine Driving Condition (Line) ·
Engine Speed |

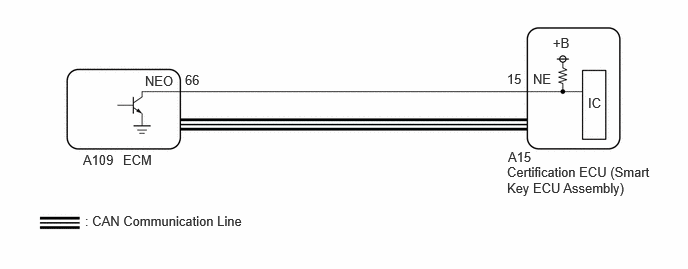

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
When using the GTS with the ignition switch off, perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins, and then select the vehicle model manually.
Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start (CAN). While using the GTS, periodically perform lock and unlock operations using the door control switch of the multiplex network master switch assembly at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
·The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.
·Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.
·After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".
PROCEDURE
Read the Data List according to the display on the GTS.
- Body Electrical > Power Source Control > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note Engine Driving Condition (Line) Engine state Stop or Driving Stop: Engine stopped
Driving: Engine running-
- Body Electrical > Power Source Control > Data List
-
Tester Display Engine Driving Condition (Line) - 50003 454 401
- Body Electrical > Power Source Control > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note Engine Speed Engine speed 0 to 16383.75 rpm Fluctuates in accordance with actual engine speed -
- Body Electrical > Power Source Control > Data List
-
Tester Display Engine Speed - 50003 454 101
- OK:
The GTS display changes correctly in response to the engine condition.
- Result:
Proceed to OK NG
OK
NG
Pre-procedure1
Disconnect the A15 certification ECU (smart key ECU assembly) connector.
Disconnect the A109 ECM connector.
Procedure1
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(A15,A109)Location & Routingewd_type=routing;type=c,c;code=A15,A109
Click Connector(A15)Instrument Panel>Engine Room Main Wire>Smart Key ECU Assemblyewd_type=component;type=c;code=A15;pinno=15
Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECMewd_type=component;type=c;code=A109;pinno=66
A15-15 (NE) - A109-66 (NEO) Always Below 1 Ω A15-15 (NE) or A109-66 (NEO) - Other terminals and body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
Post-procedure1
None
OK
NG
Pre-procedure1
Connect the A15 certification ECU (smart key ECU assembly) connector.
Connect the A109 ECM connector.
Procedure1

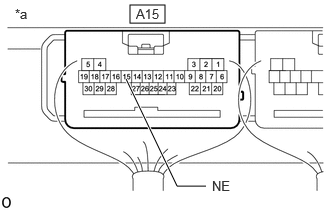

| *a | Component with harness connected
(Certification ECU (Smart Key ECU Assembly)) |
Using an oscilloscope, check the engine speed input signal waveform at the terminal of the certification ECU (smart key ECU assembly).
- OK:
Tester Connection Condition Specified Condition Click Location & Routing(A15)Location & Routingewd_type=routing;type=c;code=A15
Click Connector(A15)Instrument Panel>Engine Room Main Wire>Smart Key ECU Assemblyewd_type=component;type=c;code=A15;pinno=15
A15-15 (NE) - Body ground Engine stopped No pulse generation A15-15 (NE) - Body ground Engine running Pulse generation
- Result:
Proceed to OK NG
Post-procedure1
None
OK
NG
