RM38N0EC _51 Engine / Hybrid System _111790 M20C-FKS, M20D-FKS EMISSION CONTROL _0588333 DIFFERENTIAL PRESSURE SENSOR A

M20C-FKS, M20D-FKS EMISSION CONTROL DIFFERENTIAL PRESSURE SENSOR REMOVAL

PROCEDURE

Hide Display 12601B 1.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Hide Display 89481B 2.REMOVE DIFFERENTIAL PRESSURE SENSOR

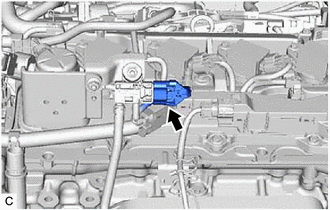

Disconnect the differential pressure sensor connector.

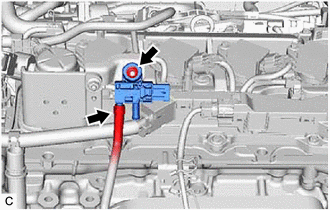

Slide the clip and disconnect the vacuum transmitting hose assembly from the differential pressure sensor.

Remove the nut and differential pressure sensor from the sensor bracket.

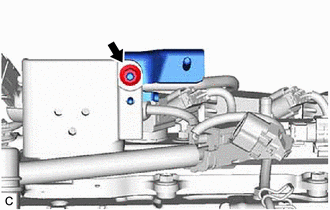

Hide Display 25715 3.REMOVE EMISSION CONTROL VALVE BRACKET

HINT:: Perform this procedure only when replacement of the emission control valve bracket is necessary.

Remove the nut and emission control valve bracket from the fuel pump flange.

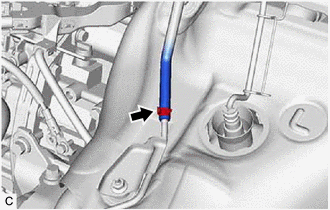

Hide Display 25760 4.REMOVE VACUUM TRANSMITTING HOSE ASSEMBLY

Slide the clip and remove the vacuum transmitting hose assembly from the No. 1 pipe.
