M20C-FKS, M20D-FKS EMISSION CONTROL  EMISSION CONTROL SYSTEM  PARTS LOCATION

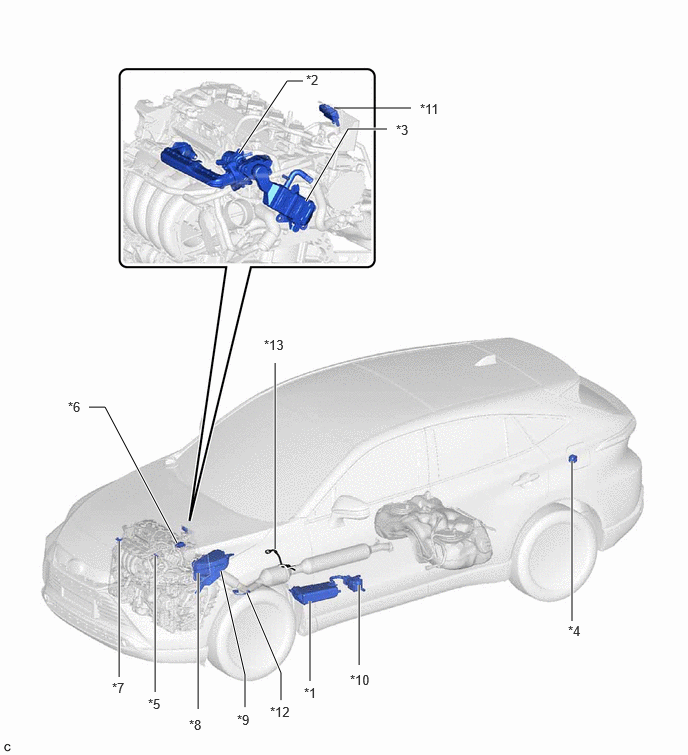

ILLUSTRATION

1.24,7.052 1.24,5.635 true 1.615,7.208 1.615,5.792 true 2.063,7.385 2.063,5.969 true 2.552,7.365 2.552,7.031 2.552,7.031 2.302,5.948 true 3.229,7.094 3.229,6.26 true 3.74,6.927 3.74,6.094 true 5.958,6.469 5.958,4.802 true 1.844,5.656 1.094,4.24 1.094,4.24 0.927,4.24 true 3.156,0.844 2.99,0.844 2.99,0.844 2.49,1.594 true 4.031,1.344 3.625,1.344 3.625,1.344 3.188,2.094 true 3.479,1.125 4.281,1.125 false 2.865,5.719 2.865,3.781 true 2.927,7.292 2.927,7.01 2.927,7.01 2.573,6.177 true 3.167,7.135 3.417,7.302 0.25,0.167 10 false *1 3.188,0.75 3.438,0.917 0.25,0.167 10 false *2 4.125,1.271 4.375,1.438 0.25,0.167 10 false *3 5.917,6.49 6.167,6.656 0.25,0.167 10 false *4 1.542,7.25 1.792,7.417 0.25,0.167 10 false *5 0.708,4.156 0.958,4.323 0.25,0.167 10 false *6 1.167,7.083 1.417,7.25 0.25,0.167 10 false *7 1.969,7.469 2.219,7.635 0.25,0.167 10 false *8 2.469,7.417 2.719,7.583 0.25,0.167 10 false *9 3.646,7 3.979,7.167 0.333,0.167 10 false *10 4.375,1.052 4.833,1.25 0.458,0.198 10 false *11 2.813,7.333 3.271,7.531 0.458,0.198 10 false *12 2.75,3.51 3.208,3.708 0.458,0.198 10 false *13

*1	CANISTER (CHARCOAL CANISTER ASSEMBLY)	*2	EGR VALVE ASSEMBLY
*3	EGR COOLER ASSEMBLY	*4	FUEL TANK CAP ASSEMBLY
*5	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)	*6	PURGE VALVE (PURGE VSV)
*7	E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)	*8	ECM
*9	NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 1 RELAY - EFI NO. 2 FUSE	*10	NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY
*11	DIFFERENTIAL PRESSURE SENSOR	*12	NO. 1 EXHAUST GAS TEMPERATURE SENSOR
*13	NO. 2 EXHAUST GAS TEMPERATURE SENSOR	-	-
