Hide 35410J 1.INSPECT TRANSMISSION VALVE BODY ASSEMBLY

a.

Inspect Shift Solenoid Valve SL1:

i.

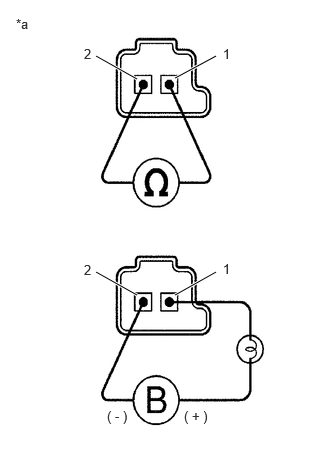

C201747C21
1,0.583 1.427,0.823 true 1,2.833 1.427,3.073 true 1.823,0.813 2.25,0.583 true 1.823,3.073 2.25,2.833 true 0.875,0.479 1.073,0.74 0.198,0.26 10 false 2 2.323,0.479 2.552,0.677 0.229,0.198 10 false 1 1.115,4.25 1.531,4.5 0.417,0.25 10 false ( - ) 1.917,4.25 2.323,4.5 0.406,0.25 10 false ( + ) 0.875,2.729 1.073,2.948 0.198,0.219 10 false 2 2.323,2.719 2.5,2.917 0.177,0.198 10 false 1 0.167,0.167 0.5,0.5 0.333,0.333 10 false *a
*a Component without harness connected
(Shift Solenoid Valve SL1)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 20°C (68°F) 5.0 to 5.6 Ω


If the result is not as specified, replace the transmission valve body assembly.


ii.

Connect a positive (+) lead from the battery with a 21 W bulb to terminal 1 and a negative (-) lead to terminal 2 of the shift solenoid valve SL1 connector. Check that the valve moves and makes an operating sound.

NOTICE:

When using battery voltage during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.


OK:

The shift solenoid valve SL1 moves and makes an operating sound.


If the result is not as specified, replace the transmission valve body assembly.



b.

Inspect Shift Solenoid Valve SL2:

HINT:

Refer to Inspect Shift Solenoid Valve SL1.



c.

Inspect Shift Solenoid Valve SLU:

HINT:

Refer to Inspect Shift Solenoid Valve SL1.



d.

Inspect Shift Solenoid Valve SLP:

HINT:

Refer to Inspect Shift Solenoid Valve SL1.



e.

Inspect Shift Solenoid Valve SLS:

HINT:

Refer to Inspect Shift Solenoid Valve SL1.



f.

Inspect Shift Solenoid Valve SC1:

i.
C500545C01
0.156,0.104 0.354,0.271 0.198,0.167 10 false *a 2.021,4 2.354,4.25 0.333,0.25 10 false ( + ) 2.833,4 3.167,4.25 0.333,0.25 10 false ( - )
*a Component without harness connected
(Shift Solenoid Valve SC1)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Shift solenoid valve SC1 connector terminal - Shift solenoid valve SC1 body 20°C (68°F) 11 to 15 Ω


If the result is not as specified, replace the transmission valve body assembly.


ii.

Connect a positive (+) lead from the battery to the terminal of the shift solenoid valve SC1 connector and a negative (-) lead to the shift solenoid valve SC1 body, and check that the shift solenoid valve SC1 moves and makes an operating sound.

NOTICE:

When using battery voltage during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.


OK:

The shift solenoid valve SC1 moves and makes an operating sound.


If the result is not as specified, replace the transmission valve body assembly.



g.

Inspect Shift Solenoid Valve SC2:

HINT:

Refer to Inspect Shift Solenoid Valve SC1.



h.

Inspect Shift Solenoid Valve SC3:

HINT:

Refer to Inspect Shift Solenoid Valve SC1.
