K120 / K120F / K121 / K121F CVT  K121 / K121F SHIFT LEVER POSITION SENSOR  COMPONENTS

ILLUSTRATION

2.646,1.094 3.583,1.292 0.938,0.198 3.583,1.188 4.115,1.188 false 3.083,1.99 3.615,1.99 false 2.75,1.104 3.688,1.292 0.938,0.188 8 false 18.5 (189, 14) 4.24,1.177 5.177,1.365 0.938,0.188 10 false x 3 2.896,1.917 3.229,2.177 0.333,0.26 10 false *1

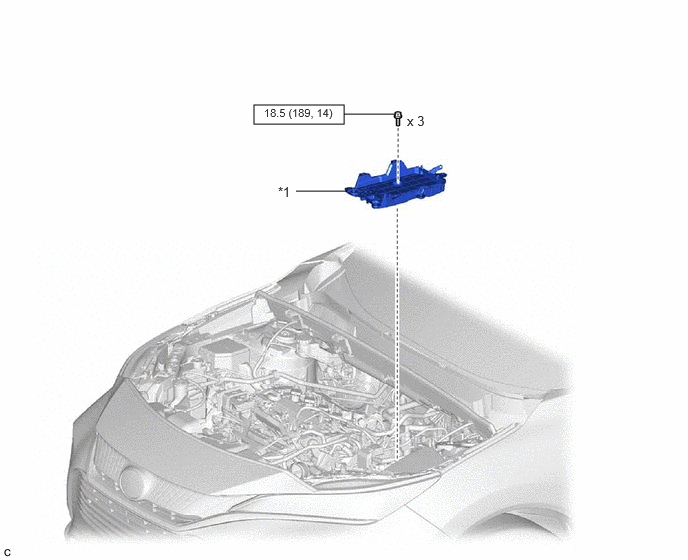

*1	BATTERY CLAMP SUB-ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

ILLUSTRATION

4.875,0.448 5.896,0.656 1.021,0.208 2.823,0.927 3.604,1.135 0.781,0.208 4.844,0.417 5.927,0.688 1.083,0.271 2.792,0.885 3.635,1.167 0.844,0.281 2.479,1.479 2.958,1.479 false 2.052,0.292 2.531,0.292 false 1.927,0.844 2.406,0.844 false 1.635,1.771 2.115,1.771 false 4.365,0.563 4.875,0.563 false 4.563,1.917 5.042,1.917 false 2.448,1.271 2.646,1.031 2.646,1.031 2.823,1.031 false 1.771,0.75 2.073,0.917 0.302,0.167 10 false *1 5.083,1.813 5.396,2.042 0.313,0.229 10 false *2 1.458,1.677 1.802,1.906 0.344,0.229 10 false *3 3,1.375 3.354,1.635 0.354,0.26 10 false *4 1.938,0.188 2.135,0.417 0.198,0.229 10 false ● 4.396,0.604 4.74,0.844 0.344,0.24 10 false x 2 4.927,0.469 5.969,0.656 1.042,0.188 8 false 5.4 (55, 48 in.*lbf) 2.885,0.938 3.708,1.115 0.823,0.177 8 false 12.7 (130, 9)

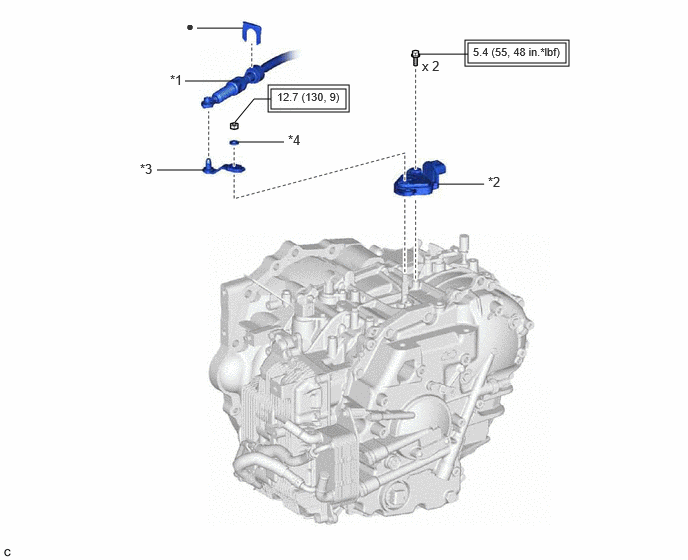

*1	TRANSMISSION CONTROL CABLE ASSEMBLY	*2	SHIFT LEVER POSITION SENSOR
*3	TRANSMISSION CONTROL SHAFT LEVER	*4	WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
