AUDIO / VIDEO RADIO RECEIVER INSTALLATION
PROCEDURE
86120L
1.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY
84330
2.INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY
86212C
3.INSTALL NO. 2 RADIO RECEIVER BRACKET
a.
Install the No. 2 radio receiver bracket with the 2 screws.
- Torque:
- 3.5 N*m (36 kgf*cm, 31 in.*lbf)
86211J
4.INSTALL NO. 1 RADIO RECEIVER BRACKET
a.
Install the No. 1 radio receiver bracket with the 2 screws.
- Torque:
- 3.5 N*m (36 kgf*cm, 31 in.*lbf)
5.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
a.
Connect each connector.
b.
0,0 0,0
false
|
Install in this Direction |

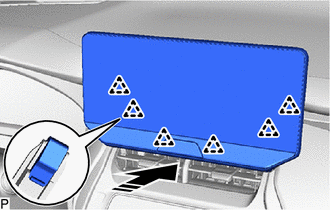

Engage the 6 clips as shown in the illustration.
c.
0.094,0.208 0.25,0.406
0.156,0.198
10
true
1
3.198,0.229 3.354,0.427
0.156,0.198
10
true
2
3.083,0.865 3.24,1.063
0.156,0.198
10
true
3
0.24,0.844 0.396,1.042
0.156,0.198
10
true
4
Install the radio and display receiver assembly with bracket with the 4 bolts.
- Torque:
- 12 N*m (122 kgf*cm, 9 ft.*lbf)
- HINT:
-

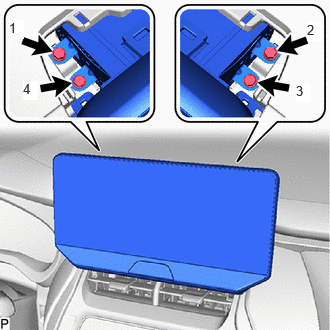

Install the bolts in the order shown in the illustration.
55422C
6.INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
