K120 / K120F / K121 / K121F CVT  K121 / K121F CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM  PARTS LOCATION

ILLUSTRATION

1.792,0.781 2.042,0.781 2.042,0.781 3.063,1.667 true 1.906,3.458 2.156,3.458 2.156,3.458 3.406,2.292 true 3.656,2.135 5.417,0.49 5.417,0.49 5.667,0.49 true 1.708,3.375 2.021,3.531 0.313,0.156 10 false *1 1.625,0.698 1.938,0.854 0.313,0.156 10 false *2 5.708,0.417 6.021,0.573 0.313,0.156 10 false *3

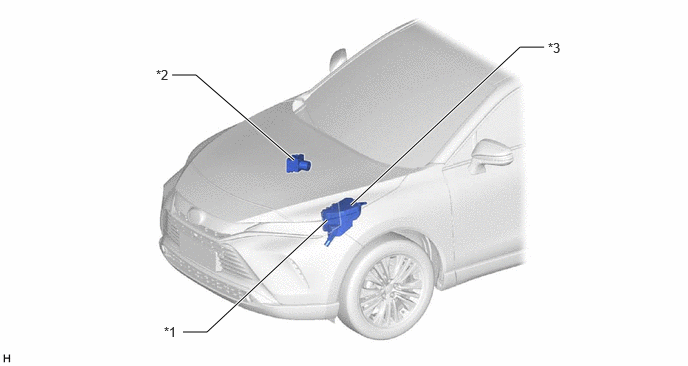

*1	ECM	*2	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY	-	-

ILLUSTRATION

0.75,2.25 1.583,2.25 true 1.667,4.073 1.917,4.073 1.917,4.073 3,2.656 true 2.521,4.479 2.771,4.479 2.771,4.479 3.604,2.896 true 0.979,1.146 1.229,1.146 1.229,1.146 2.146,2.396 true 1.531,0.563 1.781,0.563 1.781,0.563 2.365,1.646 true 2.646,0.302 2.896,0.302 2.896,0.302 3.646,2.302 true 0.896,3.594 1.146,3.594 1.146,3.594 1.729,2.76 true 2.469,0.229 2.781,0.385 0.313,0.156 10 false *1 2.344,4.406 2.656,4.563 0.313,0.156 10 false *2 0.802,1.073 1.115,1.229 0.313,0.156 10 false *3 1.365,0.49 1.677,0.646 0.313,0.156 10 false *4 0.729,3.521 1.042,3.677 0.313,0.156 10 false *5 1.5,4.01 1.813,4.167 0.313,0.156 10 false *6 0.573,2.177 0.885,2.333 0.313,0.156 10 false *7

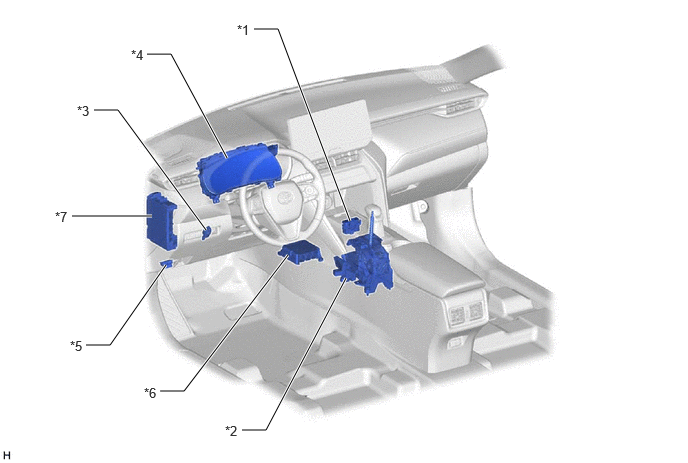

*1	DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)	*2	SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH - SHIFT POSITION INDICATOR
*3	STOP LIGHT SWITCH ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	DLC3	*6	AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR
*7	POWER DISTRIUTION BOX ASSEMBLY	-	-

ILLUSTRATION

1.771,0.531 2.021,0.531 2.021,0.531 2.854,1.531 true 1.729,4.385 1.979,4.385 1.979,4.385 2.563,3.635 true 1.594,0.469 1.906,0.625 0.313,0.156 10 false *1 1.552,4.323 1.865,4.479 0.313,0.156 10 false *2

*1

TRANSMISSION WIRE - CVT FLUID TEMPERATURE SENSOR

*2

TRANSMISSION VALVE BODY ASSEMBLY - SHIFT SOLENOID VALVE SC1 - SHIFT SOLENOID VALVE SC2 - SHIFT SOLENOID VALVE SC3 - SHIFT SOLENOID VALVE SL1 - SHIFT SOLENOID VALVE SL2 - SHIFT SOLENOID VALVE SLU - SHIFT SOLENOID VALVE SLP - SHIFT SOLENOID VALVE SLS

ILLUSTRATION

2.042,0.49 2.292,0.49 2.292,0.49 3.208,1.323 true 4.688,0.854 5.021,0.354 5.021,0.354 5.271,0.354 true 3.469,0.313 3.719,0.313 3.719,0.313 4.302,1.229 true 5.385,2.438 5.969,2.438 true 4.719,2.563 5.385,3.313 5.385,3.313 5.635,3.313 true 1.969,4.229 2.219,4.229 2.219,4.229 3.135,2.729 true 5.344,1.448 5.76,1.031 true 3.292,0.229 3.604,0.385 0.313,0.156 10 false *1 1.885,0.406 2.198,0.563 0.313,0.156 10 false *2 5.677,3.25 5.99,3.406 0.313,0.156 10 false *3 5.313,0.271 5.625,0.427 0.313,0.156 10 false *4 1.792,4.167 2.104,4.323 0.313,0.156 10 false *5 5.802,0.938 6.115,1.094 0.313,0.156 10 false *6 6.021,2.354 6.333,2.552 0.313,0.198 10 false *7

*1	SHIFT LEVER POSITION SENSOR	*2	SHIFT STROKE SENSOR
*3	TRANSMISSION REVOLUTION SENSOR (NT)	*4	TRANSMISSION REVOLUTION SENSOR (NOUT)
*5	TRANSMISSION REVOLUTION SENSOR (NC1)	*6	TRANSMISSION REVOLUTION SENSOR (NSS)
*7	OIL PRESSURE SENSOR	-	-
