M20C-FKS, M20D-FKS ENGINE CONTROL SFI SYSTEM P136001 "A" Camshaft Position Actuator Bank 1 General Electrical Failure
DESCRIPTION
Refer to DTC P001001.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Note |
|---|---|---|---|---|---|
| P136001 | "A" Camshaft Position Actuator Bank 1 General Electrical Failure | While engine is running, malfunction in rotation signal (VTS) of cam timing control motor with EDU assembly is detected for 3 seconds (1 trip detection logic). | ·
Cam timing control motor with EDU assembly ·
Open or short in cam timing control motor with EDU assembly circuit ·
VVT relay ·
ECM |
Comes on | SAE Code: P1360 |
| Vehicle Condition | Fail-Safe |
|---|---|
·
Engine difficult to start ·
Lack of power |
The cam timing control motor with EDU assembly is operated to the most retarded position. |
MONITOR DESCRIPTION
This DTC is output when a rotation signal malfunction is detected in the cam timing control motor with EDU assembly. While the engine is running, if a rotation signal (VTS) malfunction is detected, a DTC is immediately output (1 trip detection logic).
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine.
Idle the engine for 30 seconds or more [A].
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes [B].
Read pending the DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P136001.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system has a malfunction.
·If the judgment result is INCOMPLETE, perform steps [A] through [B] again.
·[A] to [B]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

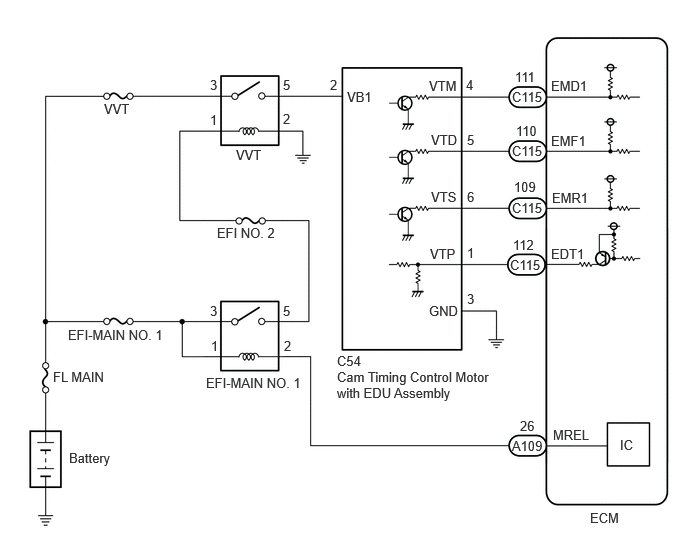

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
-
Inspect the fuses for circuits related to this system before performing the following procedure.
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Disconnect the cam timing control motor with EDU assembly connector.
Turn the ignition switch to ON.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Switch Condition Specified Condition Click Location & Routing(C54)Location & Routingewd_type=routing;type=c;code=C54
Click Connector(C54)Engine Compartment>Engine Wire>Cam Timing Control Motor with EDU Assemblyewd_type=component;type=c;code=C54;pinno=2
C54-2 (VB1) - Body ground Ignition switch ON 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Disconnect the cam timing control motor with EDU assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(C54)Location & Routingewd_type=routing;type=c;code=C54
Click Connector(C54)Engine Compartment>Engine Wire>Cam Timing Control Motor with EDU Assemblyewd_type=component;type=c;code=C54;pinno=3
C54-3 (GND) - Body ground Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Check installation condition.

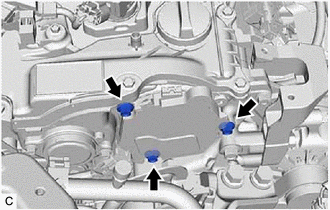

Check that the 3 installation bolts of the cam timing control motor with EDU assembly are tightened to the specified torque.
- Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)
- Result:
Proceed to OK NG
OK
NG
Disconnect the cam timing control motor with EDU assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(C54,C115)Location & Routingewd_type=routing;type=c,c;code=C54,C115
Click Connector(C54)Engine Compartment>Engine Wire>Cam Timing Control Motor with EDU Assemblyewd_type=component;type=c;code=C54;pinno=6
Click Connector(C115)Engine Compartment>Engine Wire>ECMewd_type=component;type=c;code=C115;pinno=109
C54-6 (VTS) - C115-109 (EMR1) Always Below 1 Ω C54-6 (VTS) or C115-109 (EMR1) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
- HINT:
-
Perform "Inspection After Repair" after replacing the cam timing control motor with EDU assembly.
- Result:
Proceed to NEXT
NEXT
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
Turn the ignition switch off and wait for at least 30 seconds.
- Result:
Proceed to NEXT
NEXT
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTCs are not output A DTC P136001 is output B
A
B
- Result:
Proceed to OK NG
OK
NG
Remove the VVT relay from No. 1 engine room relay block and No. 1 junction block assembly.
Disconnect the cam timing control motor with EDU assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(C54)Location & Routingewd_type=routing;type=c;code=C54
Click Connector(C54)Engine Compartment>Engine Wire>Cam Timing Control Motor with EDU Assemblyewd_type=component;type=c;code=C54;pinno=2
5 (VVT relay) - C54-2 (VB1) Always Below 1 Ω 5 (VVT relay) or C54-2 (VB1) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG

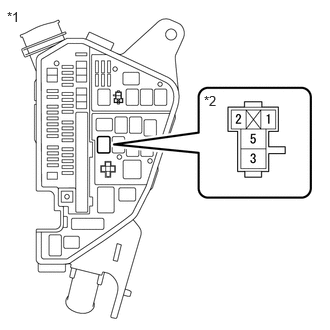

| *1 | No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly |
| *2 | VVT Relay |
Remove the VVT relay from No. 1 engine room relay block and No. 1 junction block assembly.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition 3 (VVT relay) - Body ground Always 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
| *1 | No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly |
| *2 | VVT Relay |
Remove the VVT relay from No. 1 engine room relay block and No. 1 junction block assembly.
Turn the ignition switch to ON.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Switch Condition Specified Condition 1 (VVT relay) - Body ground Ignition switch ON 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
