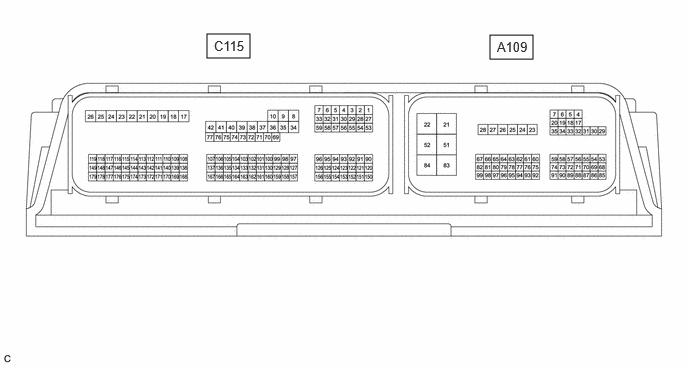

CHECK ECM
Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| A109-34 (STP) - A109-22 (E1) | Stop light switch assembly signal | Brake pedal released | 0 to 1.5 V |
| Brake pedal depressed | 11 to 14 V | ||
| A109-17 (ST1-) - A109-22 (E1) | Stop light switch assembly signal | Ignition switch ON, brake pedal depressed | 0 to 1.5 V |
| Ignition switch ON, brake pedal released | 11 to 14 V | ||
| A109-91 (CCS) - A109-92 (ECCS) | Steering pad switch circuit | Cruise control switch not pushed | 1 MΩ or higher |
| Cruise control main switch pushed | Below 2.5 Ω | ||
| CANCEL switch pushed | 228 to 252 Ω | ||
| +RES switch pushed | 599 to 661 Ω | ||
| -SET switch pushed | 1463 to 1617 Ω |
CHECK FORWARD RECOGNITION CAMERA
DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the GTS once the inspection has been completed.
Do not apply excessive force to the forward recognition camera connector.
Check forward recognition camera
Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| Q4-3 (LKSW) - Q4-10 (GND) | Steering pad switch assembly signal (distance control signal) | Ignition switch ON, steering pad switch assembly (vehicle-to-vehicle distance control switch) off | 4.75 to 5.25 V |
| Ignition switch ON, steering pad switch assembly (vehicle-to-vehicle distance control switch) on | Below 1 V | ||
| Q4-7 (IGB) - Q4-10 (GND) | Power source | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | ||
| Q4-10 (GND) - Body ground | Ground | Always | Below 1 Ω |
